AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1

Gambar besar : AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Sertifikasi:	RoHS
Nomor model:	1-776231-1/1-776164-1
Dokumen:	1-776231-1 (1).pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	500
Harga:	Bisa dinegosiasikan
Waktu pengiriman:	berdasarkan jumlah
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	3000pcs per hari

Kontak

Detil Deskripsi produk

Tipe Pemasangan:	Papan Gunung	Pin:	35 Sematkan
Bagian Wanita No.:	1-776164-1	Bagian Pria No.:	1-776231-1
Bahan:	Hitam PA66+GF (UL94 V-0), Campuran tembaga (berlapis timah/emas)	Kisaran suhu:	-40 ℃ ~ + 125 ℃
Peringkat Tahan Air:	IP67	Jumlah baris:	3
Menyoroti:	35-Pin Automotive ECU Connector , 1-776164-1 Automotive ECU Connector , AMP Automotive ECU Connector

AMP 1-776231-1 35-Pin Vertical Wire-to-Board Automotive ECU Connector 4MM 1-776164-1

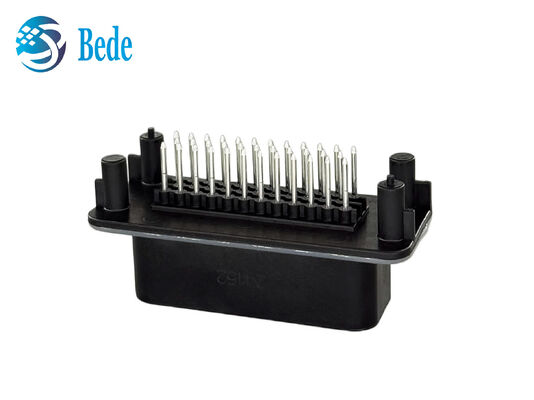

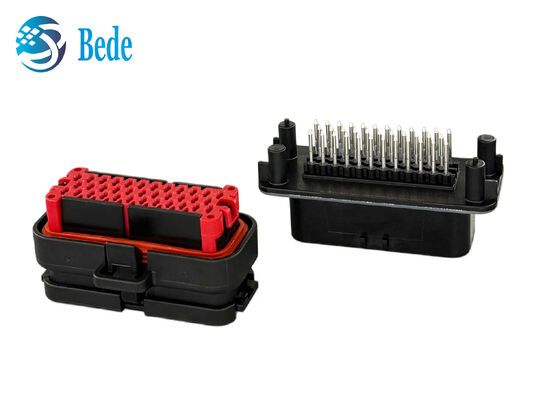

TE AMPSEAL 1-776231-1 is a 35-position vertical wire-to-board connector assembly. It features 1.3mm gold-plated 17A contacts, 4mm pitch, through-hole PCB termination, and IP ready sealing. Operating from -40°C to 125°C and UL 94V-0 rated, it provides reliable power and signal connections.

Product Specifications

Component	Features	TE Part Number	Specification
Part Number	35POS, pin dia 1.3, HDR Assy, 180deg, COD 1	1-776231-1	Vertical through-hole PCB header
Rated Current	Up to 17A per contact, gold-plated mating area	-	Power & signal circuit applications
Mounting Style	Vertical, through-hole solder termination to PCB	-	Wire-to-board connection
Header Type	Fully shrouded, 35 vertical pins, 3 rows, 4mm pitch	1-776231-1	Vertical PCB male header

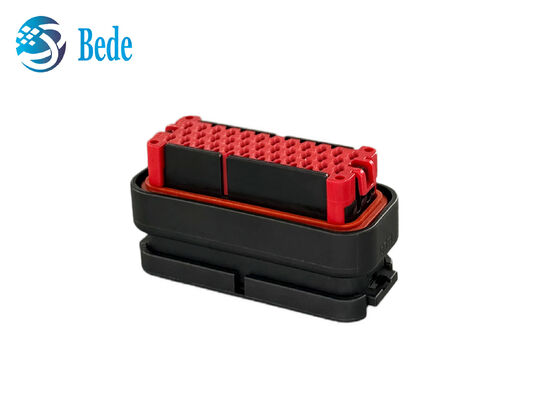

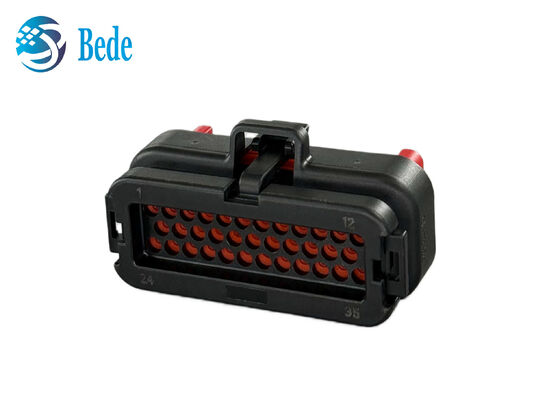

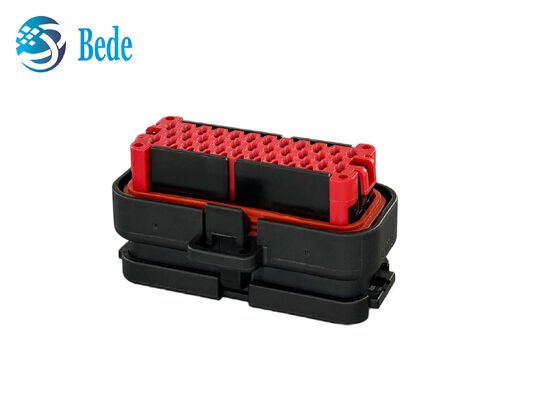

Female Housing (Wire Side)	Integral silicone seal, red secondary lock, latch	776164-1	IP67 waterproof female connector
Sealability	Sealable design	-	Suitable for sealed environments
Housing Features	Black housing, keying code 1, UL 94V-0 flammability rating	-	Robust industrial construction
Operating Temperature	-40°C to 125°C	-	Wide-range environmental compatibility

Product Features

Electrical Performance: Gold-plated 1.3mm pins rated up to 17A for reliable power and signal transmission
PCB Mounting: Vertical through-hole solder termination with 4mm pitch across 3 rows
Environmental Durability: Sealable design, operating temperature range of -40°C to 125°C
Safety Compliance: UL 94V-0 flammability rated black housing with keying code 1 for secure mating

Applications

Automotive electrical systems requiring sealed power and signal connections
Industrial control equipment and harsh environment PCB wiring applications
Transportation and off road machinery with vibration resistant connection needs
Power and signal transmission modules in high temperature industrial environments
Electrical devices demanding UL 94V-0 flammability protection and stable wire to board connection

Installation & Notes

This sealed vertical wire-to-board connector features 35 gold-plated 17A contacts, through-hole soldering, precise alignment, UL 94V-0 rating, and wide temperature resistance, requiring careful soldering and correct keying during installation for reliable power and signal applications.
