2.54mm Pitch IDC Cable Assembly 10-64 Pin Ejector Header - PBT Housing PCB Connector

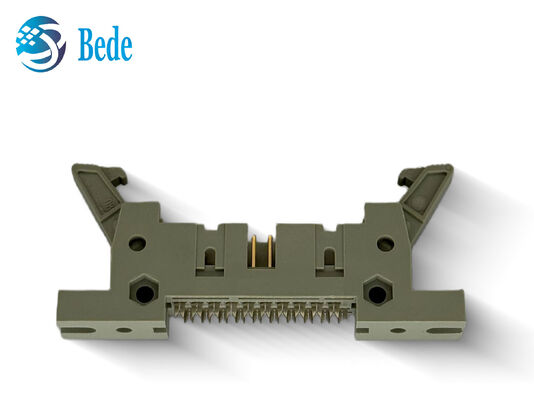

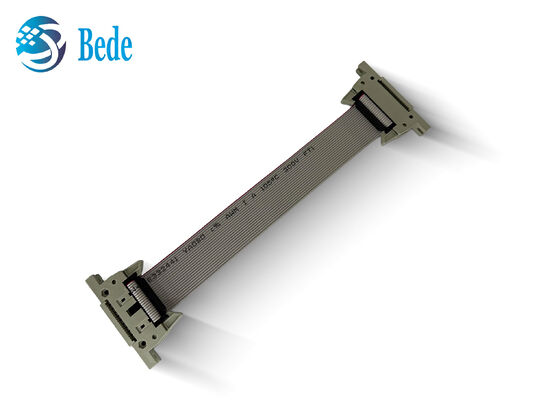

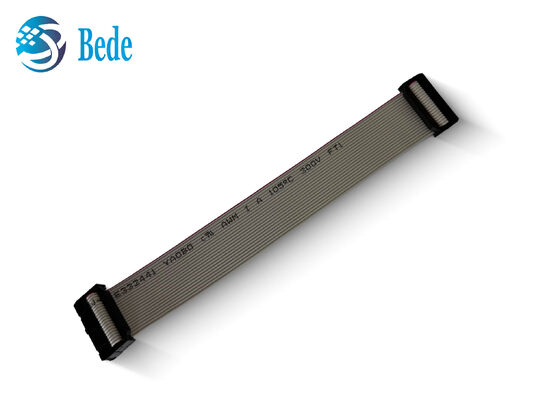

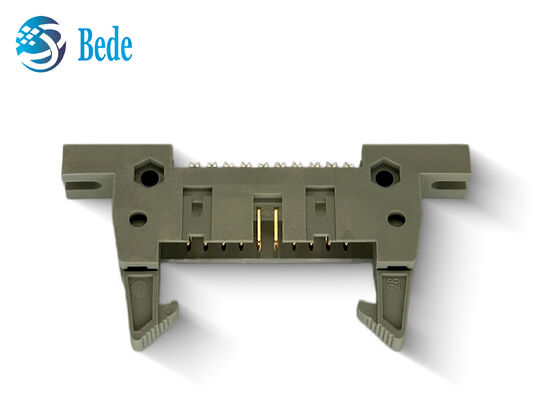

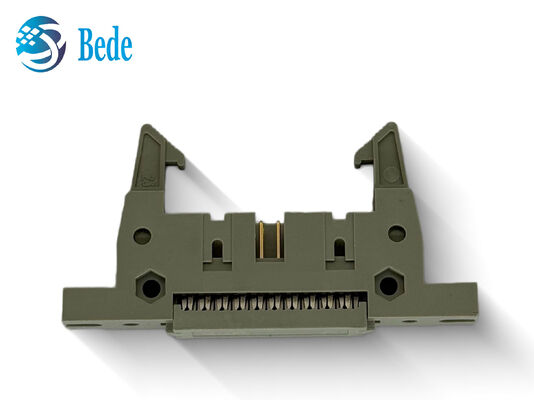

Gambar besar : 2.54mm Pitch IDC Cable Assembly 10-64 Pin Ejector Header - PBT Housing PCB Connector

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Nomor model:	Seri NF 2,54 mm
Dokumen:	2.54mm Ejector Box Header w...e).pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	500
Harga:	Bisa dinegosiasikan
Waktu pengiriman:	berdasarkan jumlah
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	3000pcs per hari

Kontak

Detil Deskripsi produk

Jumlah Pin:	10-64 pin	Bahan kontak:	Paduan Tembaga
Jenis Pelapisan:	Berlapis Emas / Timah Berlapis di atas Lapisan Bawah Nikel	Bahan Isolator:	PBT + 30% Serat Kaca
Peringkat mudah terbakar:	UL94V-0
Menyoroti:	PBT Housing PCB Connector , 64 Pin IDC Cable Assembly , 10-64 Pin Ejector Header

2.54mm Pitch IDC Cable Assembly 10-64 Pin Ejector Header

IDC connectors and flat ribbon cables provide reliable, high-density connections for electronic and computer systems. Designed for quick, secure attachment, they efficiently link flat ribbon cables to circuit boards, headers, and other hardware components.

Electrical Performance Specifications

Parameter	Specification
Current Rating	1 Amp (1A)
Withstanding Voltage	AC 500V for 1 Minute
Insulation Resistance	≥1000MΩ Min. at DC 500V
Contact Resistance	≤15mΩ Max.

Environmental Performance Specifications

Parameter	Specification
Operating Temperature	-40℃ ~ +105℃

Product Features

Standard 2.54mm Pitch: Fully compatible with universal PCB layouts for wide applicability across electronic systems
Ejector Box Header Connectors: Equipped with side locking latches for secure, vibration-resistant connections and easy plug-and-unplug operation
IDC Insulation Displacement Termination: Solderless, quick assembly with flat ribbon cables, reducing production time and labor costs
Gray Flat Ribbon Cable: Space-saving, flexible design for neat, high-density signal routing between PCBs
Industrial-Grade Reliability: Rated for 105°C operating temperature, meeting demands of harsh industrial environments
Polarized Anti-Insertion Design: Prevents reverse plugging, minimizing assembly errors and improving production efficiency
Customizable Options: Available in various pin counts and cable lengths to suit different application requirements

Applications

Automotive Electronics: Body control modules (BCM)
Industrial Automation: PLCs, industrial robots, servo drives, and test & measurement equipment for reliable signal transmission between PCBs
Network & Telecom: Routers, switches, set-top boxes, and base stations for internal board-to-board connections
Medical & Analytical Instruments: Patient monitors, lab analyzers, and diagnostic equipment for stable, low-noise signal transfer
