AMP 1473712-2 26-Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1

Gambar besar : AMP 1473712-2 26-Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Sertifikasi:	RoHS
Nomor model:	3-1437290-7/6437288-4
Dokumen:	1473712-2 (1）.pdf

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	500
Harga:	Bisa dinegosiasikan
Waktu pengiriman:	berdasarkan jumlah
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	3000pcs per hari

Kontak

Detil Deskripsi produk

Seri:	AMP SUPERSEAL 1.0	Pin:	26 Pin
Bagian Wanita No.:	3-1437290-7	Bagian Pria No.:	9-6437287-8
Bahan:	Perumahan PA66+GF, terminal tembaga kaleng/berlapis emas	Kisaran suhu:	-40 ℃ ~ + 125 ℃
Peringkat Tahan Air:	IP65
Menyoroti:	2 Rows Automotive ECU Connector , 6473711-1 Automotive ECU Connector , 7-Slots Automotive ECU Connector

AMP 1473712-2 26 Pin 2 Rows Superseal Automotive ECU Connector 7-Slots 6473711-1

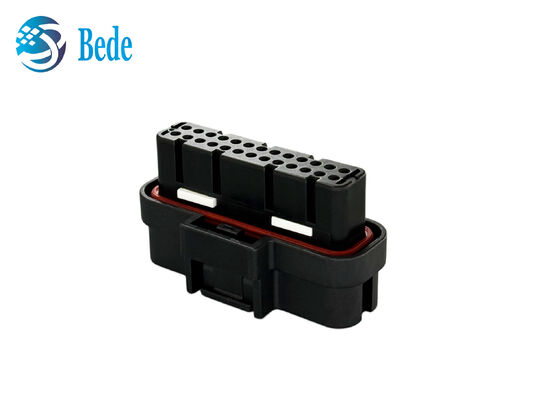

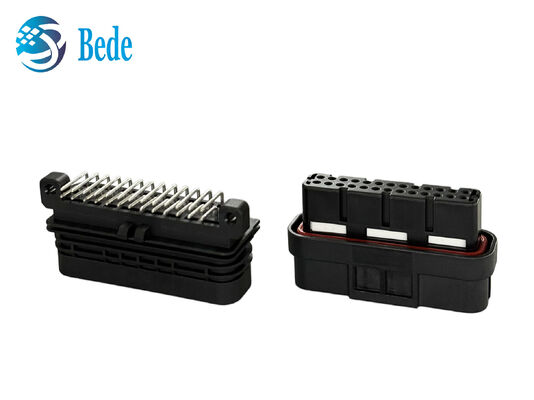

TE/AMP SUPERSEAL 1.0 26-pin automotive connector is a high-reliability solution for vehicle ECUs. It consists of a wire-side female plug (with an orange silicone seal and lock) and a PCB-side 26-right-angle-pin male header (with mounting fixtures), designed to withstand harsh environments and ensure stable signal/power transmission.

Product Specifications

Component	Features	TE Part Number	Specification

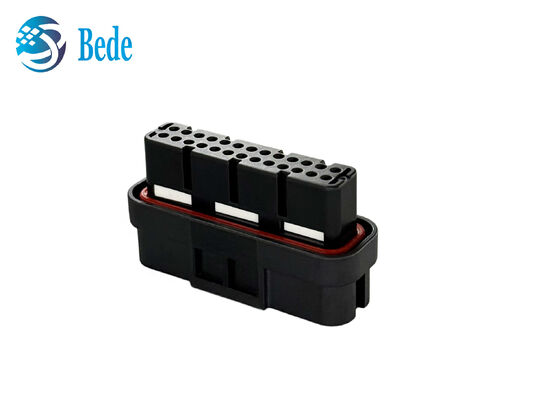

Female Housing (Wire Side)	Black PA66+GF/PBT+GF, orange silicone seal, 26-hole 2*13 matrix, latch	1473712-2	Wire-to-board, IP67

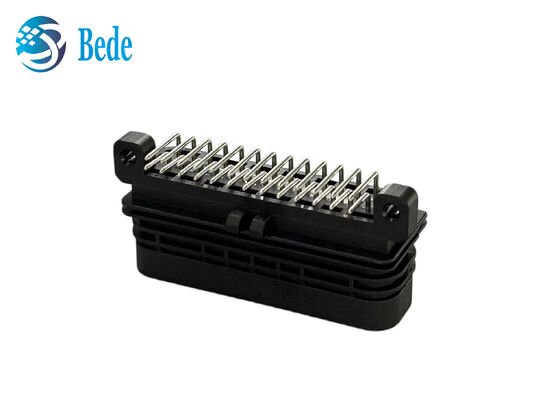

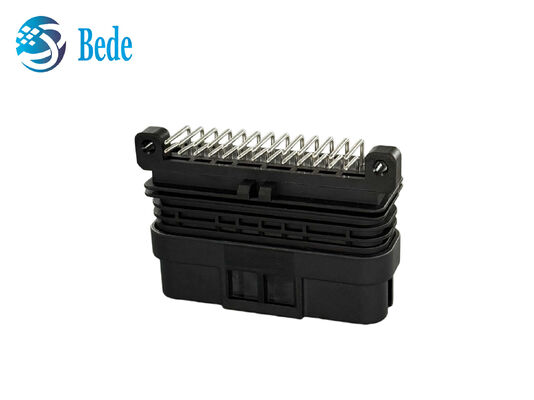

Male Header (PCB Side)	Black PA66+GF/PBT+GF, 26-pin vertical pins, mounting holes	6473711-1	PCB solder type
Pin Count	26Pin	-	Multi-signal & power
Protection	Integrated seal + latch	-	IP67 waterproof
Material	PA66+GF/PBT+GF; tinned/gold-plated copper alloy (brass/phosphor bronze)	-	High conductivity, anti-oxidation
Temp Range	-40℃ to 125℃	-

Product Features

IP67 Waterproof: Integrated silicone seal + dual-lock, full dust/water protection
High-Density Design: 26-pin compact layout for multi-signal/power transmission
TE/AMP Compatible: Direct OEM replacement, fits most ECU/controller interfaces
Easy Installation: PCB solder header + crimpable plug for mass production & maintenance

Applications

Traditional Fuel Vehicles: Engine ECU, Transmission TCU, Body Control Module (BCM) and other electronic control units
New Energy Vehicles: Battery Management System (BMS), Motor Controller (MCU) and other core EV components
Automotive Accessories: Automotive sensors, actuators, on-board diagnostic (OBD) interfaces and other wiring harness connections
Industrial & Off-Highway Vehicles: Construction machinery, agricultural machinery and other vehicle-mounted electronic control systems

Installation

Solder the male header to the controller's PCB using its mounting fixtures; crimp the female plug to the automotive wiring harness, then lock it with the male end for a secure seal.

Notes

Do not disassemble the seal structure to maintain IP67 protection; ensure correct alignment during docking to avoid pin damage; use within the rated temperature range (-40℃~125℃); keep terminals clean during installation to prevent poor contact.
