What's MS3100 Receptacle

   MIL-DTL-5015 series industrial connectors are made of aluminum alloy die-casting parts and aluminum alloy materials, with an electrophoretic green finish on the surface, protecting the casing from environmental impact. It is suitable for use in harsh environments ranging from -55 ° C to 125 ° C insulated with heat-resistant rubber, and the contact material is copper

   MIL-DTL-5015-MS3100 Wall Mounting Receptacles are favorable in manufacturing environments where they provide reliable power sources for machinery and equipment while ensuring efficient operations on the production floor. On construction sites, they facilitate temporary power connections for tools and equipment, enhancing workflow and safety. Power generation and distribution facilities also employ MS3100 Wall Mounting Receptacles for maintenance and operational needs.

Size of MIL-C-5015-MS3100

Insert arrangement of MIL-C-5015 connector

Follow picture shows the Insert arrangement / hole group row code number of shell size 18,from the direction of pin inserting. Please contact us if you need more informations.

What the 5015 Connector type code Means

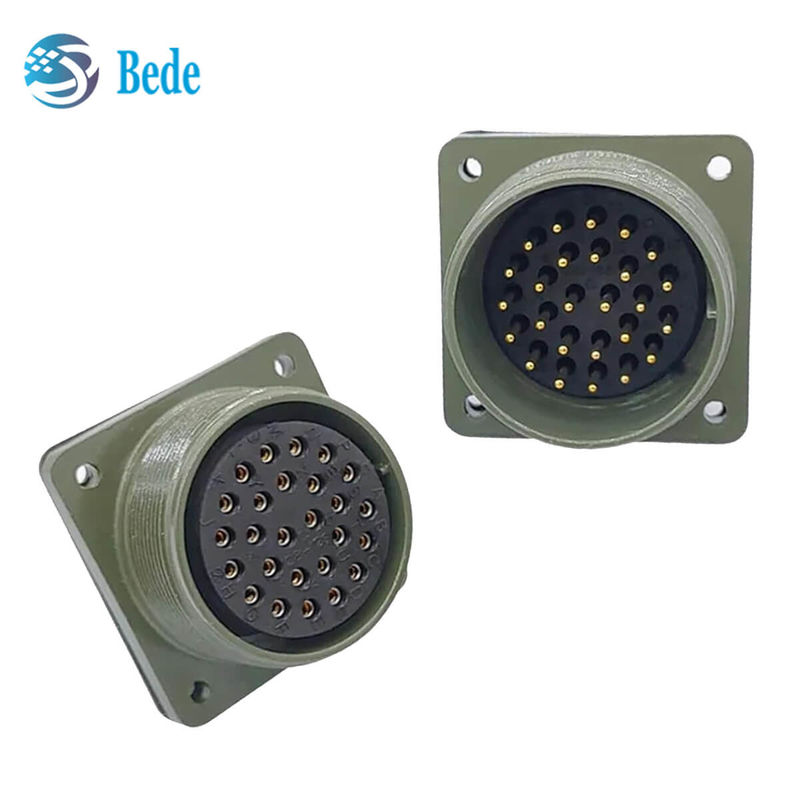

MIL-C-5015-MS3100: Wall mounting Receptacle with square flange

MIL-C-5015-MS3101: Cable connecting Plug

MIL-C-5015-MS3102: Box mounting Receptacle with square flange

MIL-C-5015-MS3106: Straight plug

MIL-C-5015-MS3108: 90° angle Plug

  For any enquiries, please inform us of the product number and quantity required as shown in the figure below, and we will provide you with the best price and service
