2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket

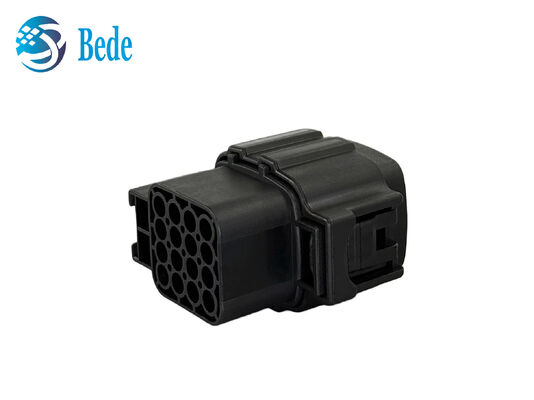

Gambar besar : 2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Sertifikasi:	RoHS
Nomor model:	2822638-1 / 174663-2

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	500
Harga:	Bisa dinegosiasikan
Waktu pengiriman:	berdasarkan jumlah
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	3000pcs per hari

Kontak

Detil Deskripsi produk

Seri:	070 TANDA EKONOSEAL-2	Jumlah posisi:	12
Jumlah baris:	2	Bahan perumahan:	PBT
Kisaran Suhu:	-30°C ~ +105°C	Ketahanan Api:	UL 94 V-2
bentuk konektor:	Persegi panjang

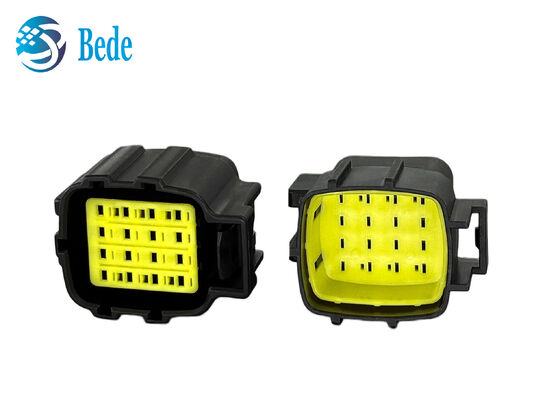

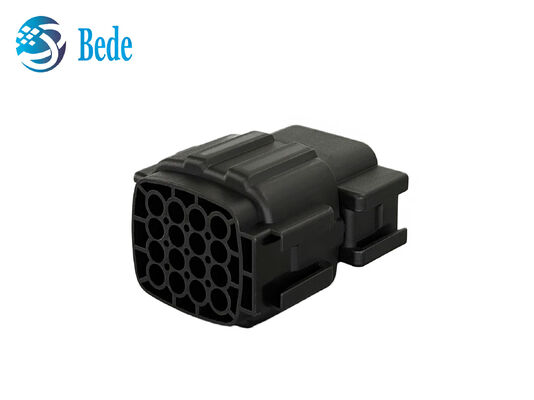

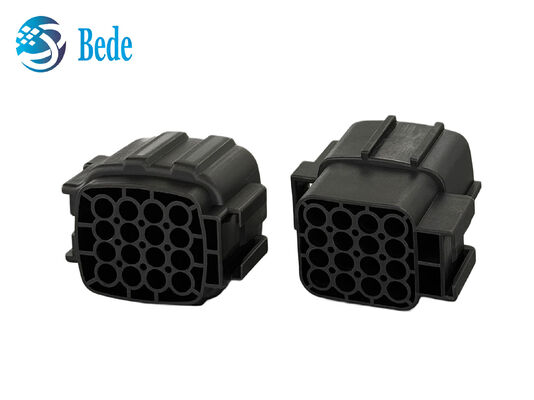

2822638-1 12-Pin TE Connectivity/AMP 174663-2 Automotive Connector Housing Plug and Socket

Product Overview

The 2822638-1 and 174663-2 are matching, wire-to-wire automotive connector components from TE Connectivity. They belong to the Econoseal J - Mark II / 070 Series, designed for harsh environments where exposure to moisture, dust, and vibration is expected.

Specifications

Specification	2822638-1	174663-2
Number of Positions	12	12
Connector & Housing Type	Housing for Female Terminals	Housing for Male Terminals
Operating Voltage	24 VDC	12 VDC
Rated Current	11 Amps (max)	11 Amps (max)
Contact Size	1.8mm	1.8mm
Temperature Range	-30°C to +105°C	-30°C to +105°C
Flame Retardancy	UL 94 V-2	UL 94 V-2
Connector Mounting Type	Cable Mount (Free-Hanging)	Cable Mount (Free-Hanging)

Product Features

12-Position Layout: Formatted in a symmetrical 2-row by 6-column grid configuration
Waterproof Environmental Sealing: Leverages secondary individual wire seals to isolate contacts from moisture
Integrated Double-Lock Plate: Uses secondary locks to prevent terminals from backing out
Anti-Mismatch Shroud: Keyed plastic profile prevents reverse or improper mating orientation
High-Vibration Latching: Exterior flexible plastic arm locks securely onto the mating cap

Applications

Automotive Sensors
Motorcycle Harnesses
Lighting Systems
Industrial Equipment

Customization Services

Custom connector plastic parts, such as insulator, nut, housing etc.
Custom connector internal conductors, male and female pins, with silver or gold plating
Custom connector accessories, such as silicone rings and dust covers
