RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S

RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S
RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S

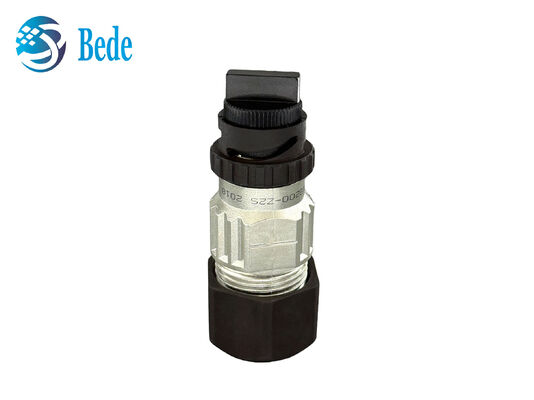

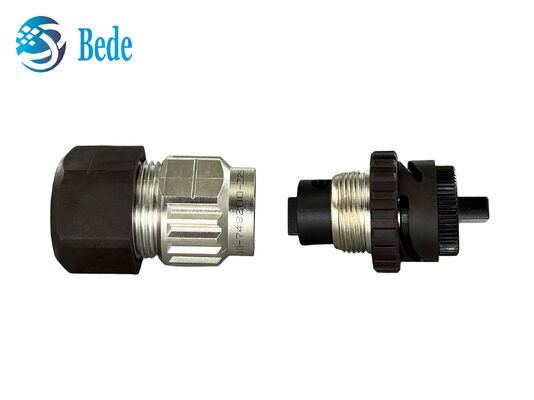

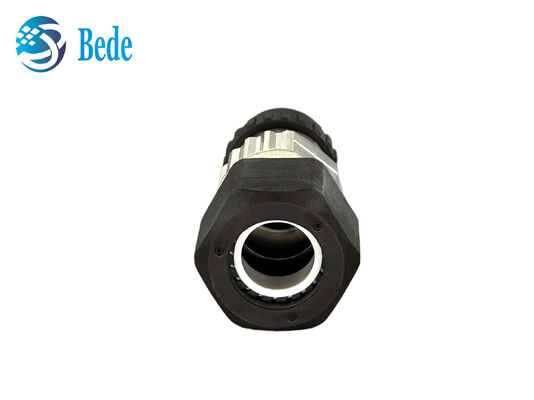

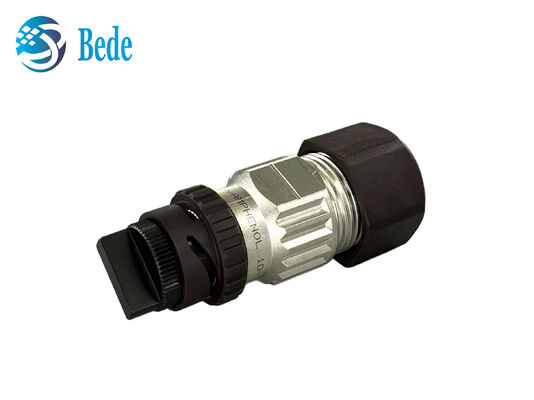

Gambar besar :  RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: RoHS
Nomor model: RNT 447 37/01
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 500
Harga: Bisa dinegosiasikan
Waktu pengiriman: berdasarkan jumlah
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 3000pcs per hari
Kontak
Detil Deskripsi produk
Pin: 2 Bahan cangkang: Paduan Seng
Kisaran suhu: -40°C ~ +105°C Peringkat Tahan Air: IP67
Ketahanan Api: UL 94 V-0 Peringkat Tahan Air: IP67
Bahan kontak: Paduan Tembaga

RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S
Product Overview
The RNT 447 37/01 (also listed by Amphenol as C10-748591-Z2S) is a specialized 2-pin circular DC power connector primarily used to power Ericsson Remote Radio Units (RRUs) in cellular base stations. It is designed for durability, harsh environment applications, field installation, and remote radio power delivery. It is highly regarded for its robust zinc construction, bayonet locking for secure connections, 55A current rating (test), and excellent EMI shielding.
Electrical Performance Specifications
Specification Details
Pin Configuration 2-Pin(2pole)
Rated Voltage 60V DC
Rated Current 26A per contact
Cable Outer Diameter (OD) Range 6.00 mm to 18.00 mm (0.236" to 0.709")
AWG Equivalence 14 AWG to 8 AWG
Temperature Range -55°C to +105°C
Waterproof Rating IP67
Flame Retardancy UL 94V-0
Product Features
  • Field-Installable Design: Features screw termination for quick, tool-less assembly and maintenance in the field.
  • High-Power Delivery: Rated for 26A per contact and 60V DC, optimized for telecommunications and remote radio equipment.
  • Signal Integrity: Equipped with 360° EMI shielding and a gold-plated copper alloy construction to ensure low contact resistance.
RNT 447 37/01 Circular Power Connector 60V DC 2-Pin for Ericsson C10-730511-Z2S 0
Applications
  • Telecommunications Infrastructure: Its most common use is providing DC power to Remote Radio Heads (RRH) and Base Transceiver Stations (BTS) on cell towers.
  • Wireless Networks: Frequently used for powering outdoor wireless radio equipment and networking hardware that requires a stable, high-current connection.
  • Industrial Machinery: Applied in sectors needing dependable electrical connections for control panels, motor connections, and automation systems.
Customization Services
  1. Custom connector plastic parts, such as insulator, nut, housing etc.
  2. Custom connector internal conductors, male and female pins, with silver or gold plating
  3. Custom connector accessories, such as silicone rings and dust covers

Label:

Konektor Melingkar,

Konektor Sirkular Militer,

Konektor Melingkar Docking
