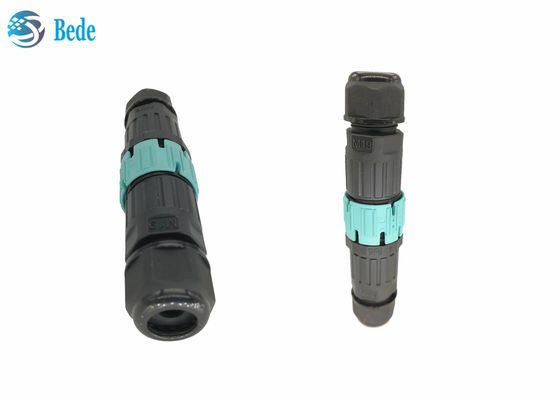

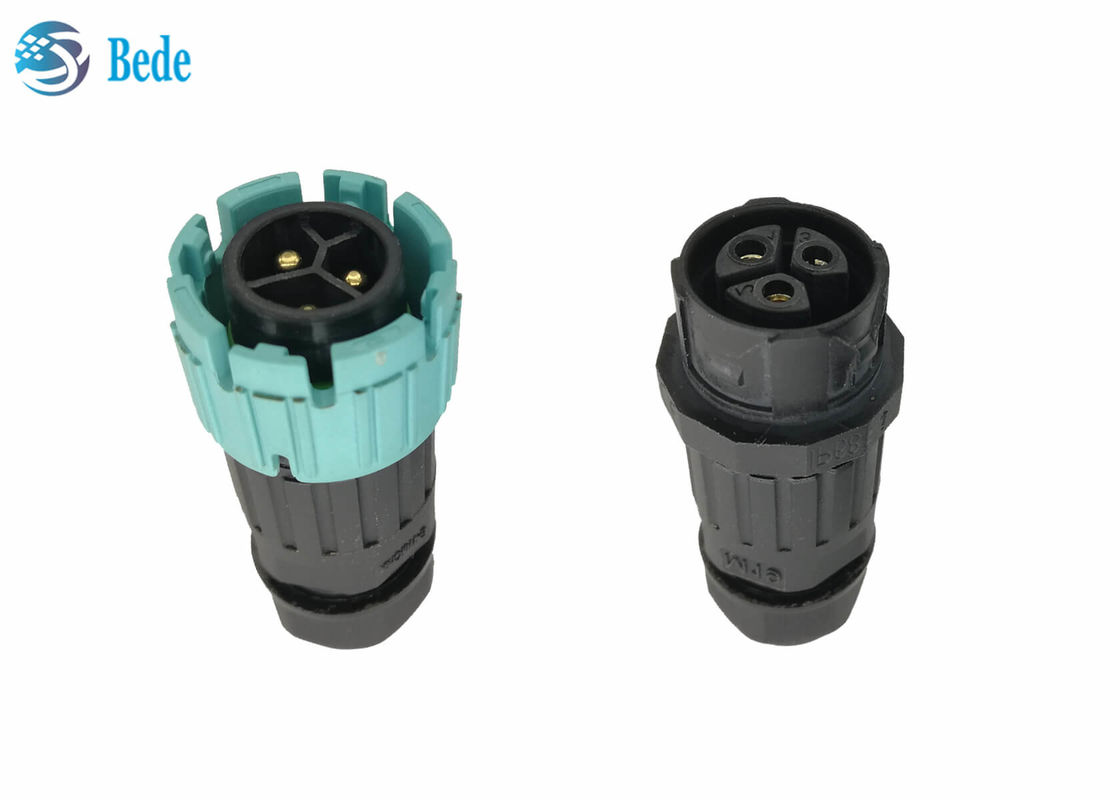

PA66 M19 Self Locking Round Connector Male To Female waterproof IP68

Semua produk
Konektor Penerbangan GX (68)
Konektor D Sub (20)
Konektor MIL-Spec (8)
Konektor Melingkar (20)
Kabel AISG RET (28)
Soket Steker Industri (30)
Konektor kabel tahan air (21)
Kotak Persimpangan Tahan Air (6)
blok terminal cepat (11)
Penyambung HDMI (18)
Sertifikasi
Cina DONGGUAN BEDE MOLD AND PLASTIC FRODUCTS CO., LID Sertifikasi
Cina DONGGUAN BEDE MOLD AND PLASTIC FRODUCTS CO., LID Sertifikasi
Ulasan pelanggan
Hi Elissa, Early last year, a coworker of mine had ordered 20 cables from your company. The cables your company made for us worked quite well, and I’m interested in using your company to produce more of these cables in the future.

—— Matthew Goetzman

Harga yang kompetitif, layanan berkualitas tinggi, kami akan bekerja sama dengan Anda untuk waktu yang lama!

—— Donegek Ilya

I 'm Online Chat Now

PA66 M19 Self Locking Round Connector Male To Female waterproof IP68

PA66 M19 Self Locking Round Connector Male To Female waterproof IP68
PA66 M19 Self Locking Round Connector Male To Female waterproof IP68

Gambar besar :  PA66 M19 Self Locking Round Connector Male To Female waterproof IP68

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE RoHS
Nomor model: EW-19-DS
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100 buah
Harga: Bisa dinegosiasikan
Kemasan rincian: dikemas dalam tas PE dan 100pcs per karton
Waktu pengiriman: dalam waktu 5 hari setelah pembayaran
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 50000 set per minggu
Kontak
Detil Deskripsi produk
Bahan Perumahan: PA66(UL94V-0) Bahan Pin: Kuningan berlapis emas
Nilai Saat Ini: 20A Nilai Tegangan: 450v
pin: 2 / 3 Metode Pengkabelan: Halangan
Tahan air: IP68 Suhu yang Berlaku: -40~+105℃
Menyoroti:

Self Locking Round Connector

,

M19 Round Connector

,

m19 waterproof connector

PA66 M19 Self Locking Round Connector Male To Female waterproof IP68

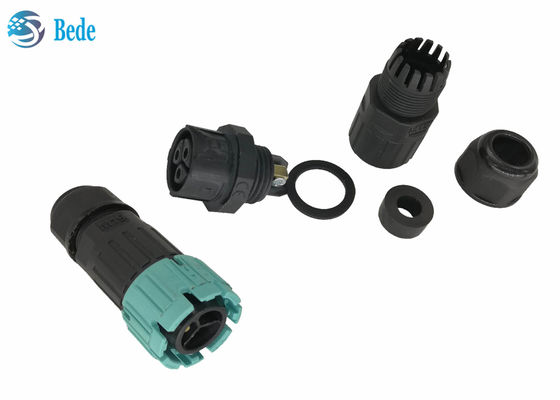

Product Structure

1. Nut, PA66 UL94V-0

2. Housing for male connector

3. Male connector and self locking nut, rotate it when unplugging the connector

4. Female connector, contact pins material is brass with 4μ gold plated

5.Screws for crimping wires

6.O-ring, rubber, grip the cable with 1 and 2 for waterproofing, available in the following three sizes to accommodate different cables

PA66 M19 Self Locking Round Connector Male To Female waterproof IP68 0

PA66 M19 Self Locking Round Connector Male To Female waterproof IP68 1

Similar products



1. waterproof connector, cable docking style, wiring method welding

2. waterproof connector, cable docking style, wiring method crimp

3. waterproof connector, panel mounting style, wiring method welding

4. waterproof connector, panel mounting style, wiring method crimp

PA66 M19 Self Locking Round Connector Male To Female waterproof IP68 2

Label:

Konektor Melingkar,

Konektor Sirkular Militer,

Konektor Melingkar Docking
