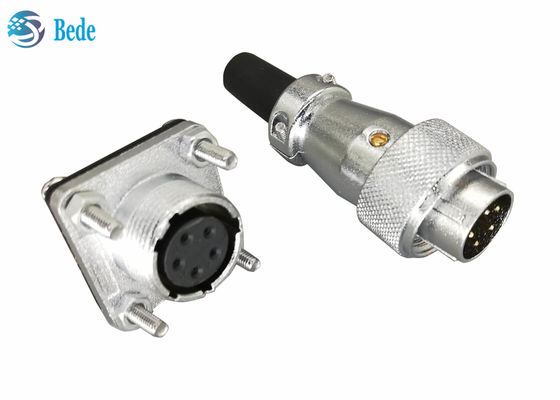

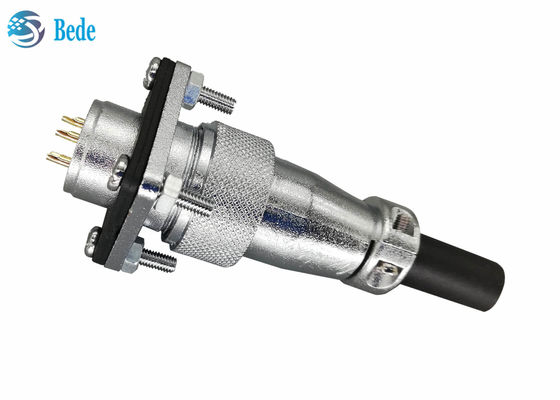

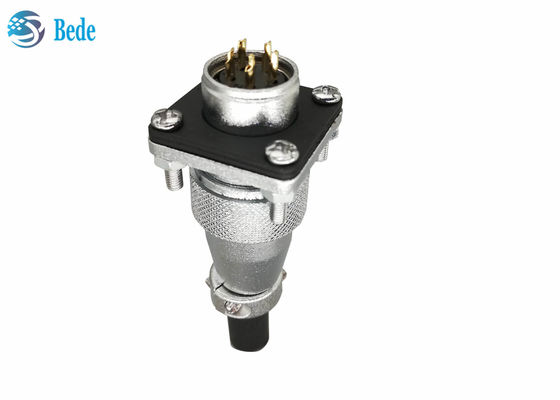

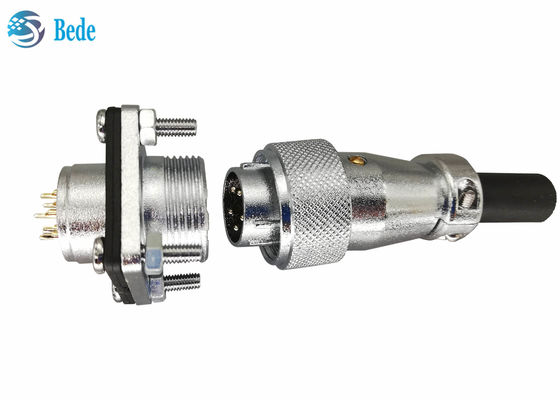

9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover

9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover
9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover

Gambar besar :  9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE ROHS
Nomor model: WS20-SF-9/10/12/14
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100 set
Harga: Bisa dinegosiasikan
Kemasan rincian: pengepakan dalam tas PE dan 100 set per karton
Waktu pengiriman: Dalam 2 hari setelah pembayaran
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 6000 set per hari
Kontak
Detil Deskripsi produk
Nilai Saat Ini: 5a Tegangan balik: 400V
Berat: 0,105kg Suhu yang Berlaku: -40~+80℃
Resistensi Isolasi: 2000MΩ Hubungi Resistensi: 0,005Ω
Kawat yang berlaku: 18AWG Bahan Kontak: Kuningan dengan berlapis Emas
Menyoroti:

WS20 Circular Connectors

,

400V 5A Circular Connectors

,

400V 12 pin circular connector

WS20 Circular Connectors With Square Flange And Dust Cover 5 6 7 8 Pin 500V 10A



Product description

   A military-quality connector with a zinc alloy housing, PPS plastic insulator, and gold-plated copper contact pins. Its a panel mounting type, the wiring method is welding, 20.5mm mounting holes and 4 pcs  2.3mm flange mounting holes should be reserved on the panel. This circular connector suitable for -40~+85℃ environment, suitable cable diameter 6 mm, 11AWG, widely used in military industry, navigation, aviation, oil exploration, industrial control and other fields.

   There are 2~10, 12 and 14 pin in stock, the default delivery is the A model in the picture below, if the B model is required, please contact us.



9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 0



Product Size

   Wiring end:  ΦD=25.8mm     L=49.5mm        Φdmax=11.6mm

   Panel mounting end and mounting hole:

Φd1 D L L1 L2 B Φd b Φ
M20 M22 14mm 28mm 23mm 22mm 20.5mm 22mm 3.2mm



9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 1



Electrical data

Pin

Rated

current

Rated

voltage

Withstand

voltage

Contact

resistance

contact

hole

wire

size
9 / 10 / 12 /  14 5A 400V AC1200V*1min 0.005Ω Φ1.5 18AWG



Similar product

This page is about WS20, the WS16, WS24, WS28 on sales also, the series also includes panel mount mode, square flange mode, please feel free to contact us if you are interested

9 10 12 14 Pin 400V 5A WS20 Circular Connectors With Square Flange And Dust Cover 2
