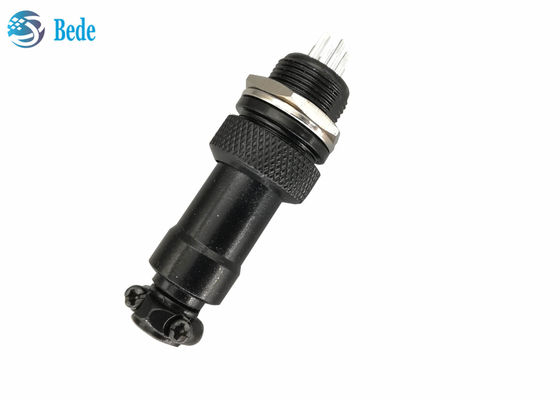

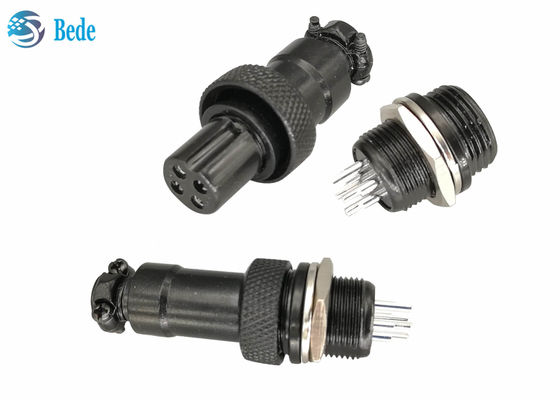

Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style

Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style
Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style

Gambar besar :  Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE RoHS
Nomor model: GX-16-2~10-B
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 150 set
Harga: Bisa dinegosiasikan
Kemasan rincian: pengepakan dalam tas PE masing-masing dan 150 set per karton
Waktu pengiriman: dalam waktu 5 hari setelah pembayaran
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 8800 set per hari
Kontak
Detil Deskripsi produk
Nilai Saat Ini: 4~7A Tegangan Kerja: 200V
pin: 2 ~ 10 pin Suhu yang Berlaku: -55~+75℃
Kabel yang berlaku: Φ7.5mm Warna: Hitam
Menyoroti:

Welding GX16 Aviation Connector

,

GX16 Aviation Connector 200V

,

gx16 aviation plug 200V

GX16 Aviation Connector Black Color Panel Mounting Style Welding Type 2~10 Pin

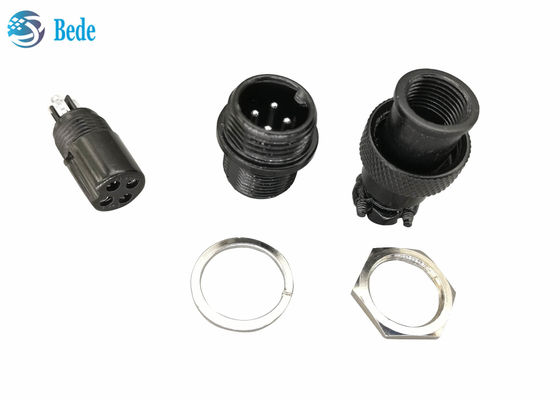

Structure

  1. Insulator, bakelite material, black color, insulation resistance greater than 1500 MΩ
  2. nut, used to lock the male and female after connection
  3. male connector, mountiing in the panel, zinc alloy materials with Oxidation treatment
  4. contact pins, brass material with silver plated
  5. nut and spring washer, used for mounting the male end, stainless steel materials

Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style 0



Electrical data

pins 2 pin  3pin 4pin 5pin 6 7 8 9 10 pin
rated current 7A 5A 5A 4A
working voltage 200V
Contact resistance 3mΩ max
Insulation resistance 1500MΩ
Withstand voltage 1500V
Contact hole size Φmm 2.45 2.45 2.00 1.15



All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Panel mounting model--Rear mounting

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle--front mounting

10.Waterproof cable docking model

11.Waterproof panel mount model

12.Panel mounting model with right angle--rear mounting



Welding Type 2~10 Pin GX16 Aviation Connector 200V Black Color Panel Mounting Style 1
