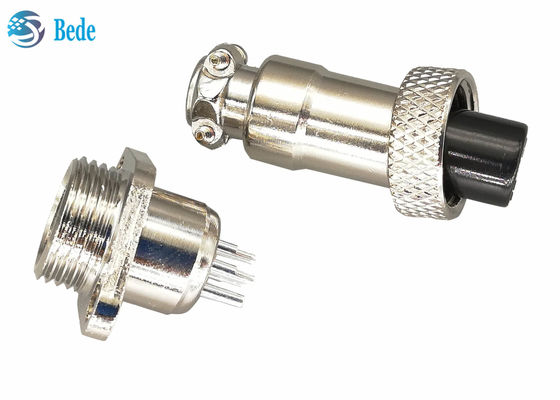

Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets

Semua produk
Konektor Penerbangan GX (68)
Konektor D Sub (20)
Konektor MIL-Spec (8)
Konektor Melingkar (20)
Kabel AISG RET (28)
Soket Steker Industri (30)
Konektor kabel tahan air (21)
Kotak Persimpangan Tahan Air (6)
blok terminal cepat (11)
Penyambung HDMI (18)
Sertifikasi
Cina DONGGUAN BEDE MOLD AND PLASTIC FRODUCTS CO., LID Sertifikasi
Cina DONGGUAN BEDE MOLD AND PLASTIC FRODUCTS CO., LID Sertifikasi
Ulasan pelanggan
Hi Elissa, Early last year, a coworker of mine had ordered 20 cables from your company. The cables your company made for us worked quite well, and I’m interested in using your company to produce more of these cables in the future.

—— Matthew Goetzman

Harga yang kompetitif, layanan berkualitas tinggi, kami akan bekerja sama dengan Anda untuk waktu yang lama!

—— Donegek Ilya

I 'm Online Chat Now

Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets

Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets
Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets

Gambar besar :  Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE
Nomor model: GX12-SF-5 6 7
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100 set
Harga: Bisa dinegosiasikan
Kemasan rincian: Tas PE, 100 set per karton
Waktu pengiriman: Dalam waktu 48 jam
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 6000 set per hari
Kontak
Detil Deskripsi produk
pin: 5/6/7 Bahan: Paduan seng
Lubang pemasangan: M12 Berat: 40 gram
Jenis kabel: Pengelasan Jenis Hubungkan: Pria dan wanita
Menyoroti:

7 Pin Gx12 Aviation Connector

,

Zinc Alloy Gx12 Aviation Connector

,

7 pin gx12 connector

Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets





Structure



1. main body, zinc alloy

2. nut, fix the male and female after connection

3.Insulator, bakelite material

4.screw hole in flange, diameter 2.5mm

5, male connector plug, zinc alloy material

6,contact pins, brass material with silver plated



Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets 0





Electrical data

Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets 1

Pins rated current rated voltage Withstand voltage Contact resistance suit temperature
5 3A 150V AC 1500V*1min 0.003Ω -50℃~ +70℃
6 3A 150V AC 1500V*1min 0.003Ω
7 3A 150V AC 1500V*1min 0.003Ω



Similar products

   GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and elbow pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type, GX12 docking type waterproof

 Zinc Alloy 7 Pin Gx12 Aviation Connector With Square Flange Male And Female Sets 2



Feature Of Aviation Connector

1. Safe use in the field, thanks to a high degree of protection,high tensile strength, abrasion and notch resistance
2. Flexible: connectors for on-site assembly,extremely high winding and unwinding strength
3. Soldering connection: proven connection technology for a large selection of different conductors
4. M8 extension cable or Flying leads(open cable ends),with good oil resistance/ chemical resistance
5. High temperature 260 degree ,solder reflowing

Label:

steker penerbangan gx12,

steker penerbangan GX12 m12,

Konektor dudukan panel Gx12
