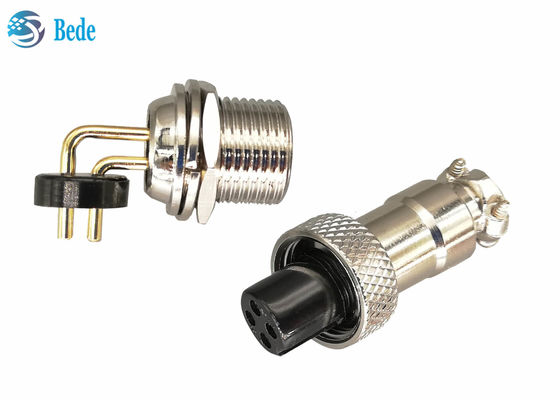

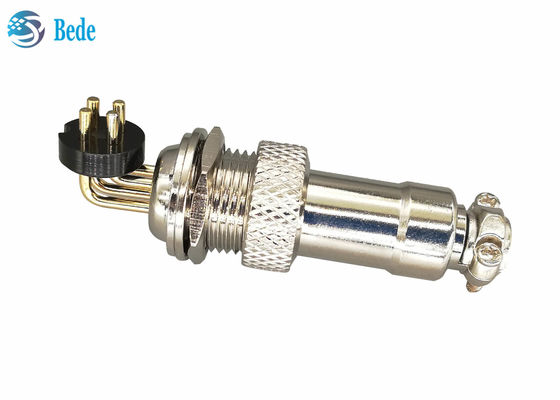

90 Angle GX16 Aviation Connector With Pins 6~10 Pins PCB Welding Style

GX16 PCB Welding Connector With 90 Angle Pins Male And Female Connector 2 3 4 5 Pins

Description

1. Mele and female connector kits for PCB welding, the end for PCB welding with 90 angle pins

2. Military quality, housing material is nickel plated zinc alloy, insulation material is bakelite, contact pin material is silver plated brass

3. Used in aviation, navigation, rail transit, industrial control and other fields

4. Applicable cable diameter is less than or equal to 7.5 mm,

Electrical data

All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Panel mounting model--Rear mounting

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle--front mounting

10.Waterproof cable docking model

11.Waterproof panel mount model

12.Panel mounting model with right angle--rear mounting
