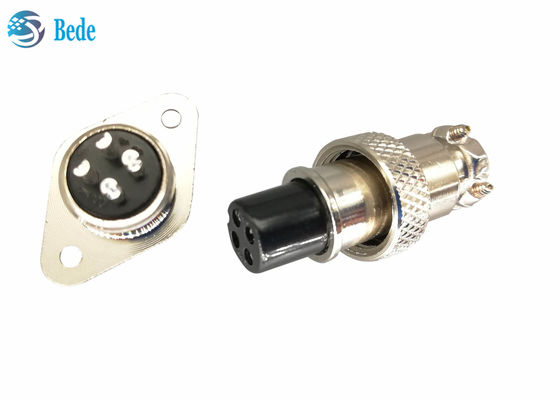

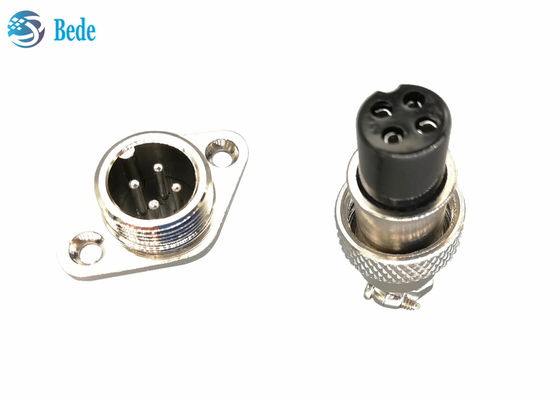

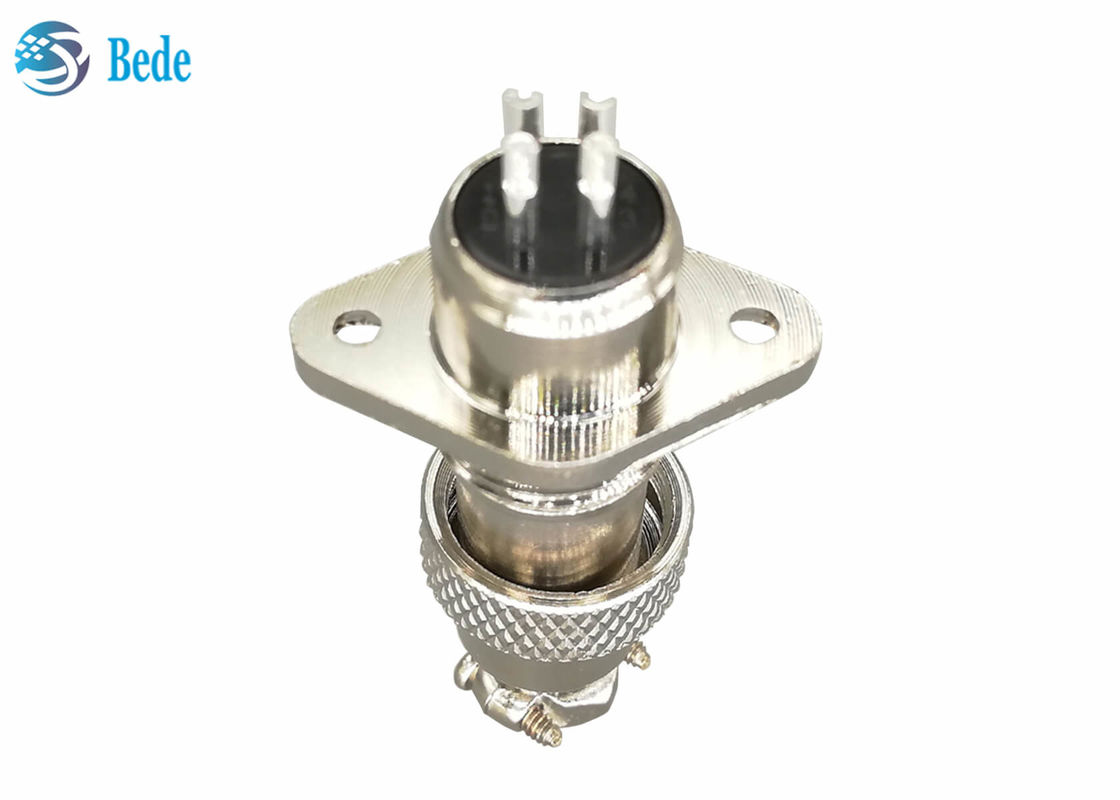

Panel Mounting GX16 Aviation Connector Sets With Rhombus Flange 2~10 Pins

Panel Mounting GX16 Aviation Connector Sets With Rhombus Flange 2~10 Pins
Panel Mounting GX16 Aviation Connector Sets With Rhombus Flange 2~10 Pins Panel Mounting GX16 Aviation Connector Sets With Rhombus Flange 2~10 Pins Panel Mounting GX16 Aviation Connector Sets With Rhombus Flange 2~10 Pins

Gambar besar :  Panel Mounting GX16 Aviation Connector Sets With Rhombus Flange 2~10 Pins

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE RoHS
Nomor model: GX16-RF-8~10
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 200 set
Harga: Bisa dinegosiasikan
Kemasan rincian: pengepakan dengan tas PE, 100 set per karton
Waktu pengiriman: dalam waktu 72 jam setelah pembayaran
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 5500 set per hari
Kontak
Detil Deskripsi produk
Bahan Cangkang: paduan seng dengan berlapis Bahan isolator: Bakelite
pin kontak: kuningan dengan berlapis perak Suhu aplikasi: -50 ~ +70℃
Lubang pemasangan: 16 MM Nilai Saat Ini: 4~7A
Menyoroti:

Panel Gx16 Aviation Connector

,

Gx16 Aviation Connector

,

Gx16 aviation plug 2 pin

GX16 Aviation Connector Panel Mounting Connector Sets With Rhombus Flange 2~10 Pins



Product structure

1.Contact pins, brass material with silver plated,

2.panel mounting end, male connector(the end be female connector is available, please notify us when you place an order)

3. Insulators,female connector, bakelite material,

4.Nut for fixing male and female connector after connection

5.Housing of female connector, Zinc alloy materials with zinc plated

Panel Mounting GX16 Aviation Connector Sets With Rhombus Flange 2~10 Pins 0

Electrical data

pins 2 3 4 5 6 7 8 9 10
Rated current 7A 7A 7A 7A 4A 4A 4A 4A 4A
working voltage 200V 200V 200V 200V 200V 200V 200V 200V 200V
Insulation resistance 1500V 1500V 1500V 1500V 1500V 2000V 2000V 2000V 2000V
Contact resistance 3mΩ 5mΩ
Contact hole size 2.45mm 2.45mm 2.45mm 2mm 1.15mm 1.15mm 1.15mm 1.15mm 1.15mm



Panel Mounting GX16 Aviation Connector Sets With Rhombus Flange 2~10 Pins 1

All familier

    About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Rear mounting model

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle

10.Waterproof cable docking model

11.Waterproof panel mount model



Panel Mounting GX16 Aviation Connector Sets With Rhombus Flange 2~10 Pins 2
