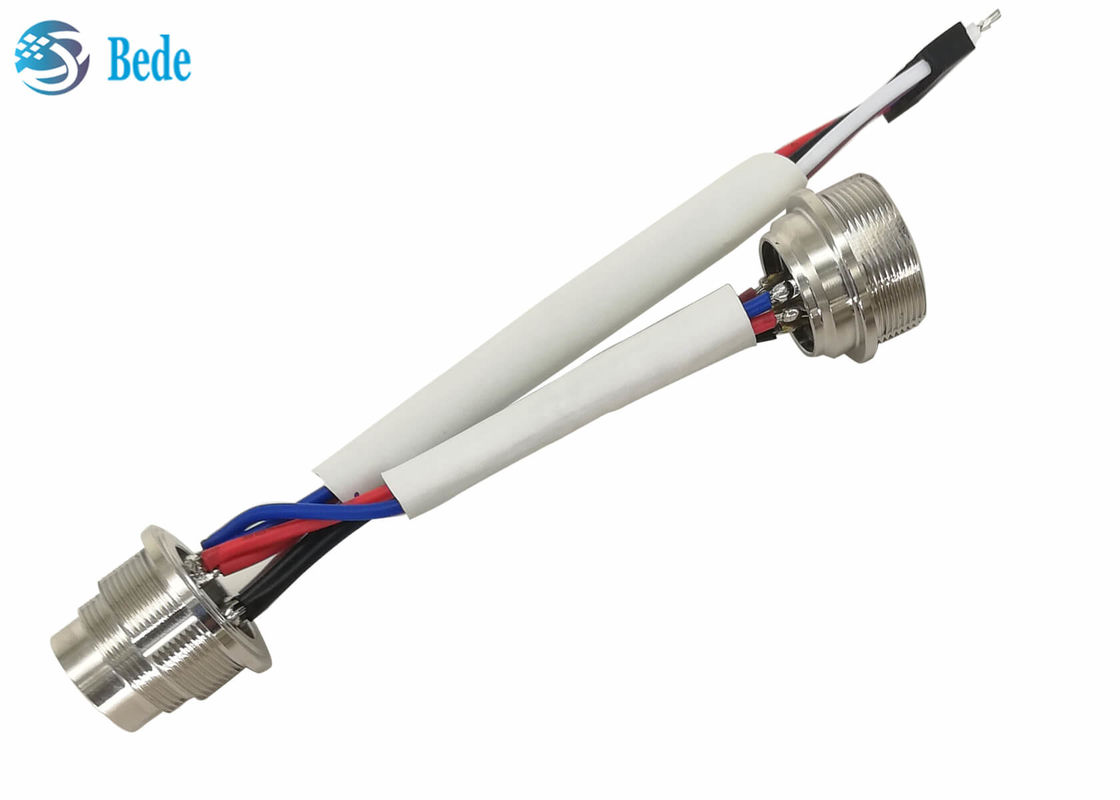

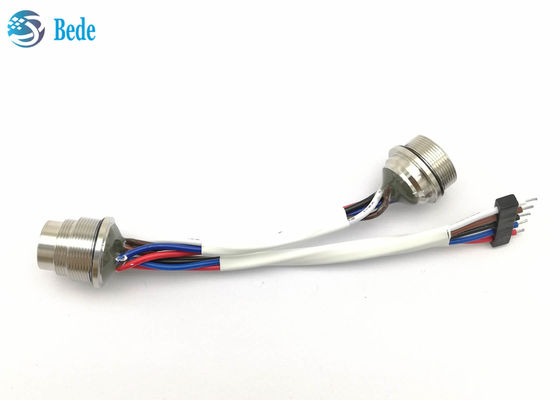

22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals

22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals
22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals 22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals 22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals 22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals 22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals

Gambar besar :  22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE RoHS
Nomor model: AISG-0081
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 120 pcs
Harga: Bisa dinegosiasikan
Kemasan rincian: 120pcs per karton, kabel konektor dengan tutup pelindung dan mur pemasangan dalam tas PE
Waktu pengiriman: 3 Hari Setelah Pembayaran
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 5500pcs per hari
Kontak
Detil Deskripsi produk
Metode Pengkabelan: Pengelasan Pengukur Kawat: 22AWG
pin kontak: Kuningan dengan berlapis Emas Tahan air: IP67
Resistensi Isolasi: menit 5MΩ Hubungi Resistensi: 3Ω maks
Menyoroti:

22AWG ret control cable

,

ret control cable IP67

,

IP67 22AWG RET Cables

RET cables AISG inner control cables male to female with customzed Terminals



Structure

1. Female connector,  AISG C485 4.1.1.3  A3 style rear mounting female connector, housing material is copper with nickel plated, insulator material is PBT platic, contact pins material is brass with silver plated

2. O-ring, rubber material, for waterproof

3. Epoxy glue for sealing and waterproofing

4. Heat shrink tube for protecting the wires, length and color can be customized

5. wires, wire gauge 22AWG

6. Housing of male connector, material is copper with nickel plated, size according AISG C485

7. Contact pins, brass with gold plated

8. Custom Terminal Blocks

9.Wire tails, tinned

22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals 0





22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals 1



22AWG AISG Inner Ret Control Cable Male To Female With Customzed Terminals 2



Connector pins location



Pins No. 1 2 3 4 5 6 7 8
Wire color blue not connect white not connect brown red black not connect



Label:

Konektor Kabel AISG,

Konektor aisg wanita,

Kabel AISG
