Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length

Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length
Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length

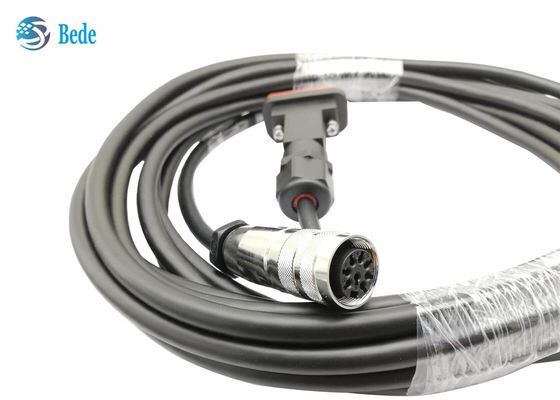

Gambar besar :  Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE RoHS
Nomor model: 8-M16-BD9-5
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100
Harga: Negotiate
Kemasan rincian: pengepakan dengan tas PE, 30pcs per karton, 15kgs per karton
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 8000 pcs per minggu
Kontak
Detil Deskripsi produk
Panjang: 5 meter Resistansi Standar: ≤5mΩ
Tegangan Operasi: AC 250V Konduktor Pusat: C5210 Ni50u"/Au3u"
Suhu Operasional: -40℃ +85℃ Bukti air: IP68
Tahan api: UL94-V0 Resistensi Isolasi: 5MΩ
Menyoroti:

HUAWEI AISG Cable

,

AISG Cable 5 Meters

HUAWEI AISG Cable,  DB9 Male to M16 8 Pin Female 5 Meters Length



Technical requirements for wires

Conductor: Tinned copper wire, 17*0.16, rated voltage 300V

Shielding layer: Aluminum-magnesium alloy, the coverage rate more than 85%

Shell: PVC material, resistant to UV aging, UL1581  1000 hours



Electrical Characteristics
Withstand voltage: 850V
Contact impedance: <5mΩ
Insulation resistance: 500MΩ
Rated voltage: 300V

Waterproof HUAWEI AISG Cable DB9 to M16 8 Pin Female 5 Meters Length 0

Mechanical properties
Insertion force: 6PIN-45N max;
Pulling force: 6PIN-45N max;
Center Conductor Thrust: 6 lbs Min
Coupling Nut Capacity: 80 lbs (350 N) Min
Coupling Nut Torque: 10 lbs-in Min
Waterproof requirements: IP67
Mechanical life: 500 times



Environmental requirements
Temperature Cycling: -40°C +85°C (IEC 60068-1)
Fire rating: UL94-V0
Neutral salt spray: 168H





Label:

Konektor Kabel AISG,

Konektor aisg wanita,

Kabel AISG
