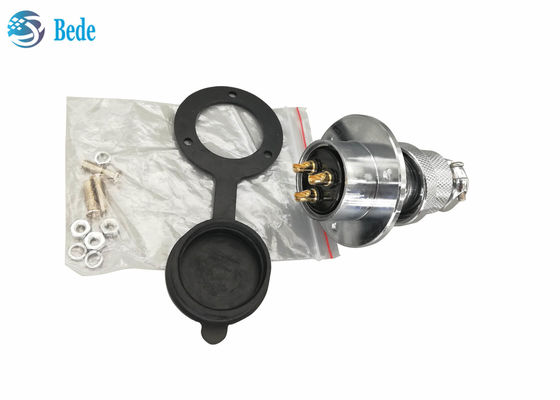

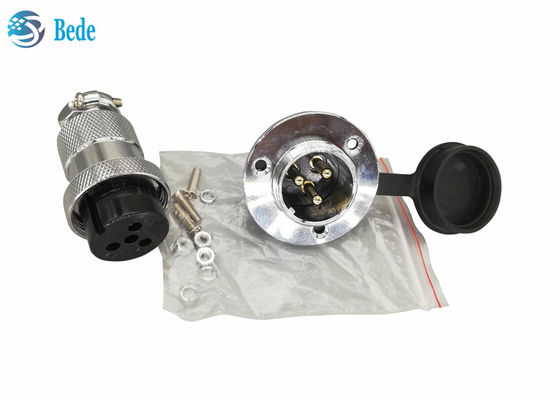

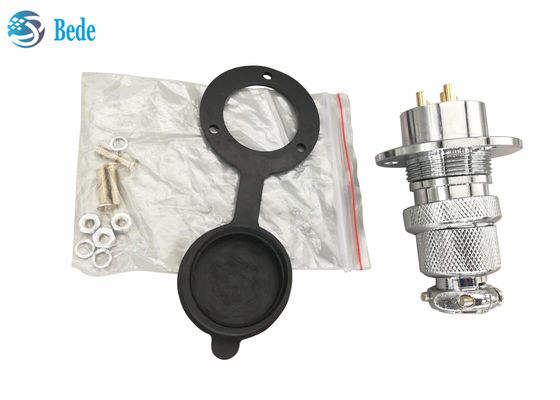

Round Flange And Dust Cover 8 9 10 12 Pin Circular Connectors For Panel Mounting

Round Flange And Dust Cover 8 9 10 12 Pin Circular Connectors For Panel Mounting
Round Flange And Dust Cover 8 9 10 12 Pin Circular Connectors For Panel Mounting Round Flange And Dust Cover 8 9 10 12 Pin Circular Connectors For Panel Mounting Round Flange And Dust Cover 8 9 10 12 Pin Circular Connectors For Panel Mounting

Gambar besar :  Round Flange And Dust Cover 8 9 10 12 Pin Circular Connectors For Panel Mounting

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE Rohs
Nomor model: GX-25-8/ 9/10/12
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100 set
Harga: Bisa dinegosiasikan
Kemasan rincian: pengepakan dalam tas PE masing-masing dan kemudian 100 set per karton
Waktu pengiriman: Dalam waktu 48 jam
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 6000 set per hari
Kontak
Detil Deskripsi produk
pin: 8/9/10/12 Bahan: Paduan seng
Nilai Saat Ini: 5~12A Tegangan balik: 150V
Jenis kabel: Pengelasan Tipe Konektor: Pria dan wanita
Menyoroti:

10 12 pin circular connectors

,

Round 8 pin circular connectors

,

Panel 9 pin circular connectors

 Circular Connectors With Round Flange And Dust Cover 8 9 10 12 Pin For Panel Mounting



Description

  1. High-current aviation connectors for rail transit, aviation, navigation, industrial control, test instruments and other fields
  2. Panel mounting model, panel mounting hole size is 25mm
  3. Suitable for temperature range of -50~+70℃
  4. Wiring method: soldering
  5. Pins: 8 9 10 12  pins
  6. Complete accessories, coming with all the nuts , washers and screws

Round Flange And Dust Cover 8 9 10 12 Pin Circular Connectors For Panel Mounting 0

Structure



1.Silicone gaskets and dust cover

2.Male end with flange, zinc alloy materials,

3.Insulator, bakelite material

4.Screw nut and washers for mounting male connector on panel

5.Contacter, brass materials,

6. Nut, zinc alloy materials, fixed the male end and fermale end after connection

7.Female connector, zinc alloy moterials



Round Flange And Dust Cover 8 9 10 12 Pin Circular Connectors For Panel Mounting 1

Electrical data



pins 8pin 9pin 10pin 12pin
Rated current / A 12 7 7 5
Rated voltage / V 250 150 150 150
Operating Voltage / V 200 200 200 200
size of contact hole / mm 2.0 2.0 2.0 1.5



Similer products

M25 circular connector with round flange 2 3 4 5 6 7 pins in stock

M25 circular connector with square flange in stock 2 3 4 5 6 7 8 9 10 12 pins in stock

Round Flange And Dust Cover 8 9 10 12 Pin Circular Connectors For Panel Mounting 2
