2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block

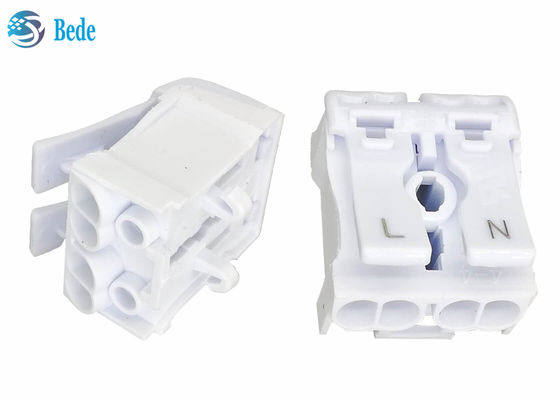

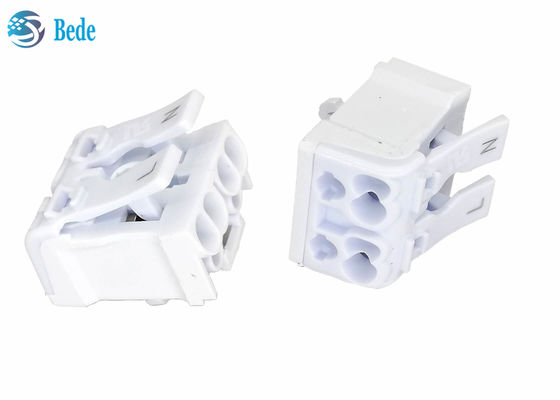

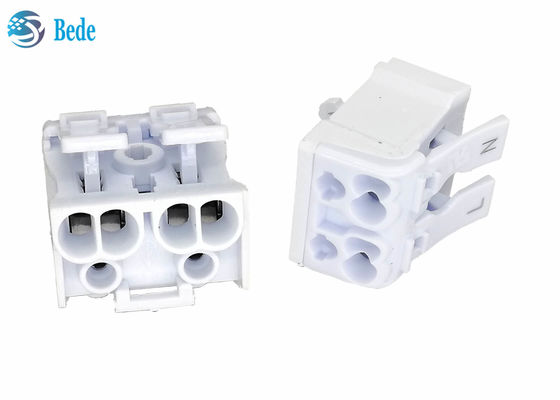

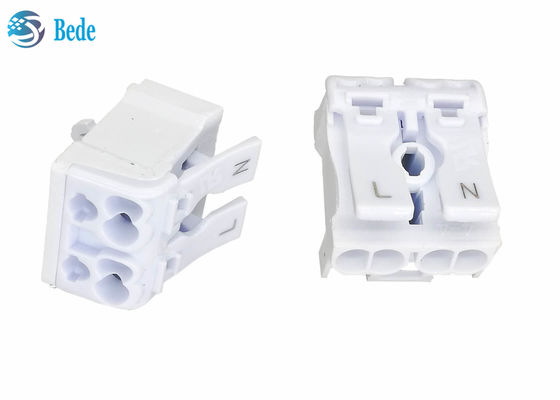

Gambar besar : 2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Sertifikasi:	CE RoHS
Nomor model:	OJ-821

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	800 pcs
Harga:	negotistion
Kemasan rincian:	tas PE
Waktu pengiriman:	3 Hari Setelah Pembayaran
Syarat-syarat pembayaran:	T/T, Western Union, Money Gram, Paypal
Menyediakan kemampuan:	20000 Pcs per Hari

Kontak

Detil Deskripsi produk

Voltase:

Saat ini:

Ukuran:

24*25.5*18mm

Warna:

Putih

Menyoroti:

Quick Terminal Block PA66

Quick Terminal Block 24A

450V push in connector block

2 Poles Push-In Wire Connector Quick Terminal Blocks Lever Nuts 450V 24A

Description

Fast wiring and disconnecting,
The main plastic is PA66 with flame retardant grade UL94-V2
Contact material is nickel plated copper, rust-proof and good electrical conductivity

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 0

Quick details

poles number	rated voltage	reted current	wire range	color
2	450V	24A	20~14 AWG	white

How to Use

1. Strip the insulation layer of the cable 8~10mm

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 1

2.insert the live wire, nature wire and earth wire into the corresponding holes

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 2

3. release wire: press the button down and pull the wire off; press the hole on another end with an electrical pen or other tool and pull the wire off

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 3

4. about the wiring hole as follow picture.

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 4

family members

3 way , 4way and 5 way in stock also, please contact us directly or back to catalog to know more

2 Poles PA66 Quick Terminal Blocks Lever Nuts 450V 24A Push In Connector Block 5
