2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type

2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type
2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type

Gambar besar :  2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE RoHS
Nomor model: XY222-412/413
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 500 buah
Harga: negotistion
Kemasan rincian: 2pin 2500pcs per karton, 3pin 1500pcs per karton
Syarat-syarat pembayaran: T/T, Western Union, Money Gram, Paypal
Menyediakan kemampuan: 20000 Pcs per Hari
Kontak
Detil Deskripsi produk
Menyoroti:

2Pin screw type quick connect terminal

,

3Pin screw type quick connect terminal

,

3Pin quick connection terminal

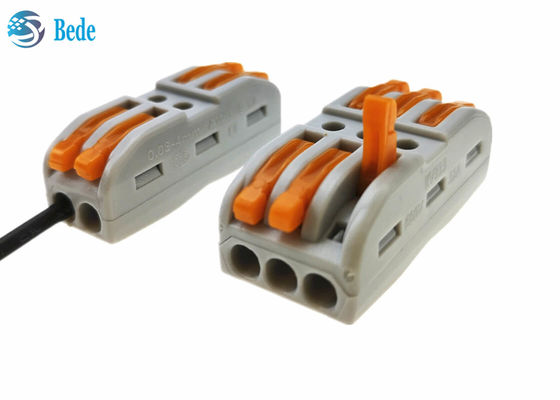

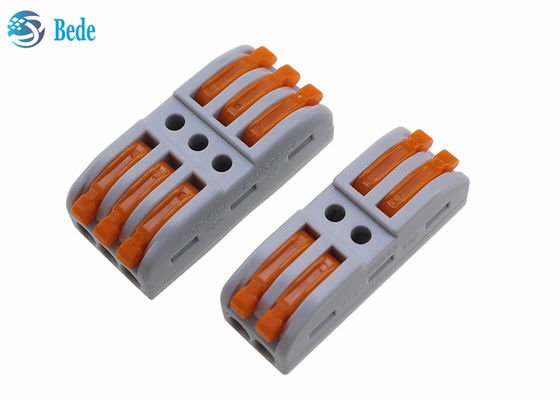

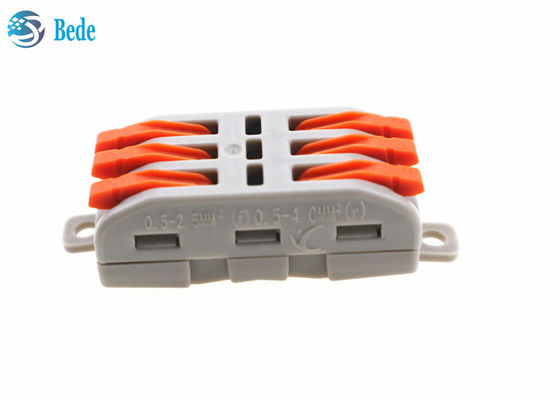

Quick Terminal Blocks 2 Pins 3 Pins Screw-Free Pull Rod Connector Welding-Free Push-Type



Description

  1. The main body is made of PA66 engineering plastic, the squeeze handle is made of PC plastic, and the flame retardant grade is UL 94 V-2
  2. No need for screws to fix wires, fast and easy to use
  3. Usually used with waterproof connectors or junction boxes
  4. technical data
applicable wire Rated voltage Rated current Insulation resistance Contact resistance temperature
28-14AWG 250/600 V 32A ≥1000MΩ ≤0.015Ω -25~95℃



2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 0

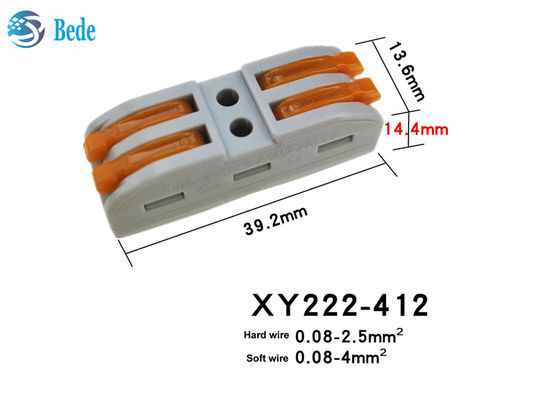

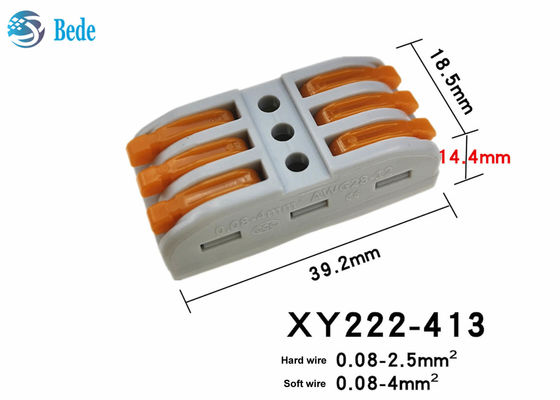

Size of the terminal blocks



2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 1

2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 2

How to Use

  1. Strip the insulation of the wire about 10mm
  2. Lift the squeeze handle up
  3. insert the wire
  4. Press the wire squeeze handle down

2 Pins 3 Pins Screw Free Quick Connect Terminal Pull Rod Connector Welding Free Push Type 3
