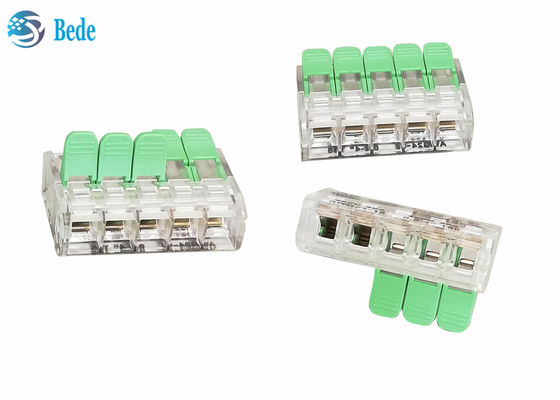

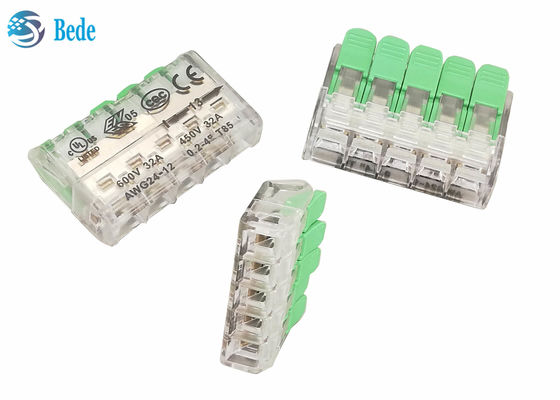

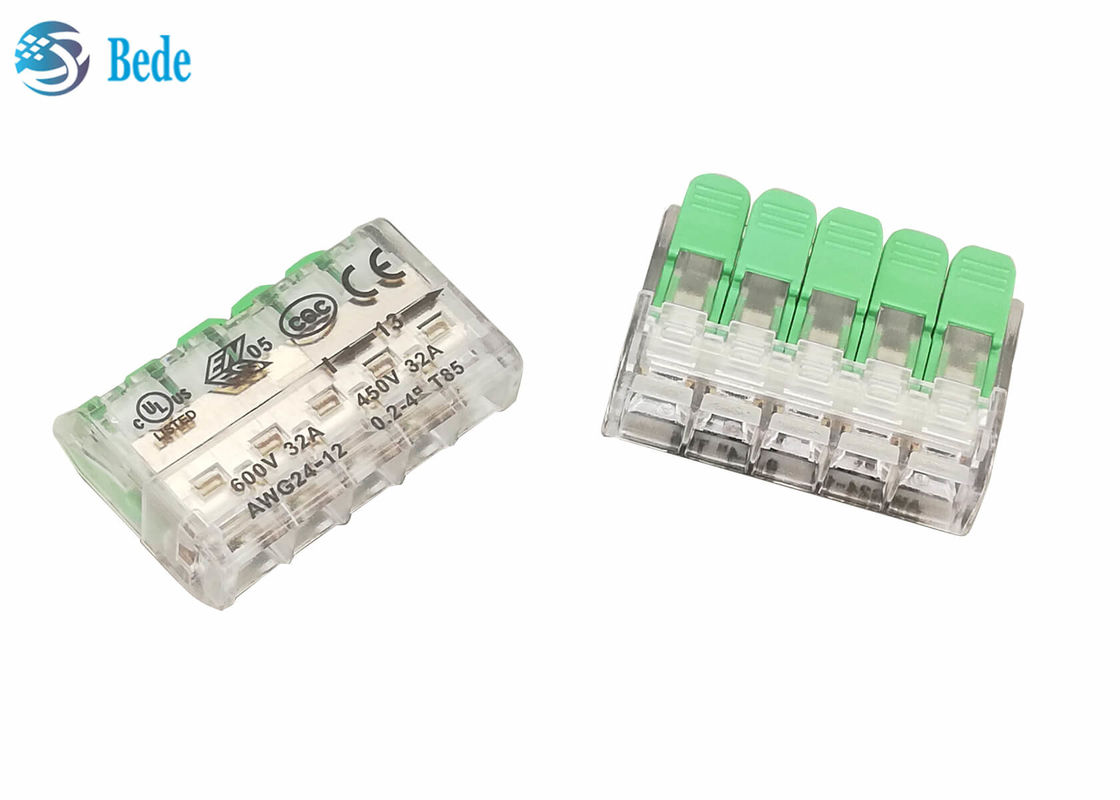

Spring Lever Quick Connect Terminal Block 5 Way 450V 32A OJ265

Spring Lever Connectors Quick Terminal Blocks 5 Way 450V 32A OJ265

product structure

1. Zinc-plated copper conductor with good electrical conductivity
2. Handle, PA66 material, flame retardant ability UL94-V2
3. Insulation shell, PC material, flame retardant ability UL94-V2
4. Wire hole, applicable wire 12~24AWG, singel hard wire 0.2 ~ 4.0 mm², multi strand hard / soft wire 0.5 ~ 2.5 mm²

Features

1. Quick wiring, replacing traditional insulating tape, no screws, no screwdriver,
2. Both soft and hard wires can be used
3. Flame retardant, safe, prevent high temperature short circuit
4. Easy to replace and save time in modifying the circuit

How to Use

1. Strip the insulation of the wire about 13mm
2. Lift the squeeze handle up
3. insert the wire
4. Press the wire squeeze handle down

family members

2 way , 3 way in stock also, please contact us directly or back to catalog to know more
