12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug

12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug
12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug 12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug 12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug 12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug

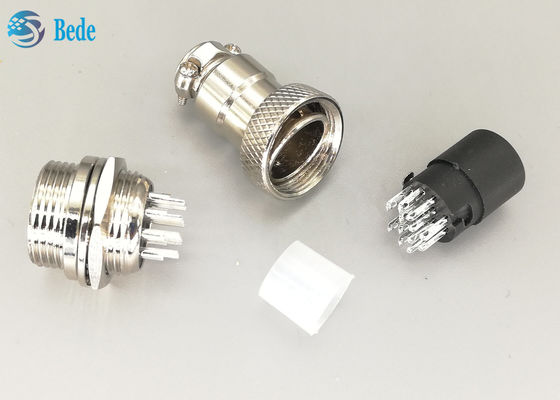

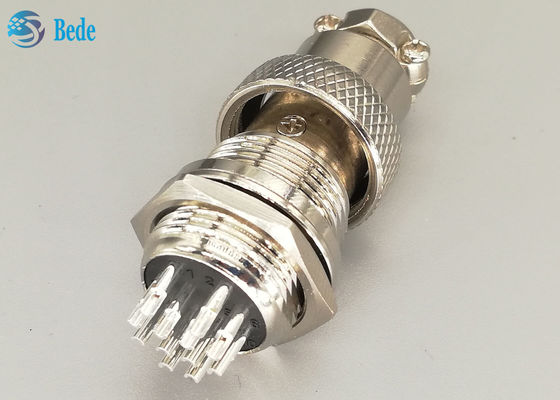

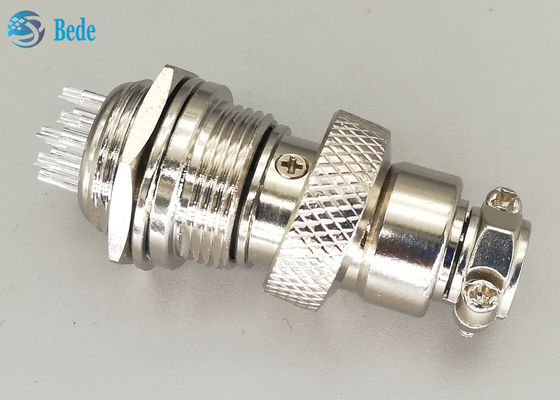

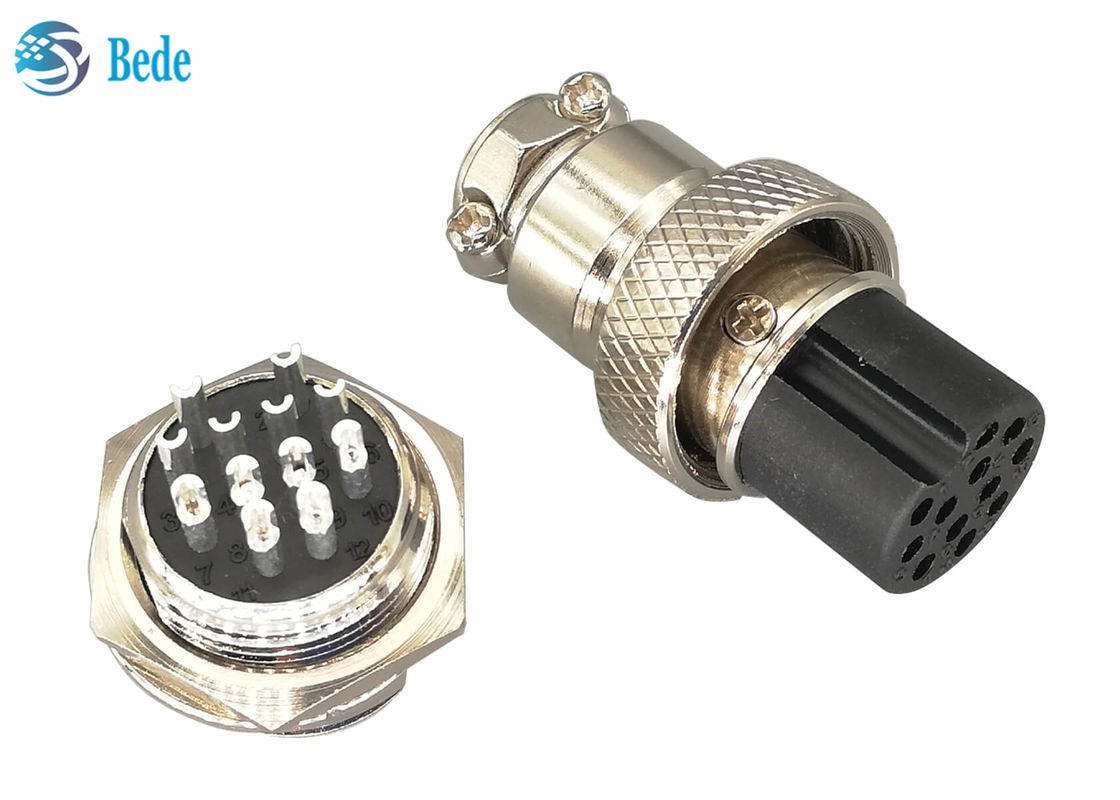

Gambar besar :  12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: RoHS
Nomor model: g×16-S-12
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100 buah
Harga: negotiate
Kemasan rincian: pengepakan dengan tas PE, 80 pcs per karton
Waktu pengiriman: Dalam 3 hari setelah pembayaran
Syarat-syarat pembayaran: D/A, D/P, T/T, Western Union, MoneyGram
Menyediakan kemampuan: 3000 set per hari
Kontak
Detil Deskripsi produk
Menyoroti:

12 Pin Gx16 Aviation Connector

,

Gx16 Aviation Connector Straight

,

Gx16 12 pin aviation connector

Aviation Conntectors g×16 12 Pin Male And Female Straight Silver Plated Plug



Product parameters

  1. 12 pins aviation connector, a 16mm mounting hole needs to be reserved on the panel,coming with a plug and a socket, screws and spring washer
  2. Terminal connection mode :welding
  3. The plug connect method:Threaded connections
  4. Shell material: Zinc alloy, nickel plated
  5. Contact material: Copper plating silver
  6. Cable diameter :φ≤7mm
  7. Contact pin diameter:φ=1.15mm
  8. Rated current: 4A
  9. Rated voltage:125V
  10. Operating Voltage: 200V
  11. Insulation resistance: ≥1500MΩ
  12. Contact type:Plug/socket
  13. Times of pull out and inserts:500







Application Field

  • Industrial control
  • Testing center
  • Rail transportation
  • Testing instruments
  • Outdoor lighting
  • Instrument and meter
  • Aviation and navigation
  • And so on

12 Pin Male And Female Gx16 Aviation Connector Straight Silver Plated Plug 0
