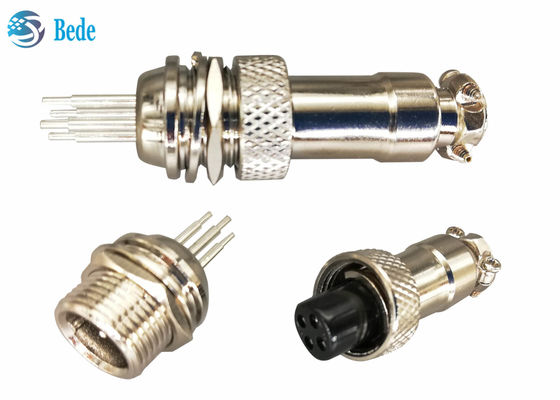

Male To Female Aviation Plug 4 Pin Kits GX16 PCB Welding Style 2 3 4 5 6 Pin

Gambar besar : Male To Female Aviation Plug 4 Pin Kits GX16 PCB Welding Style 2 3 4 5 6 Pin

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Sertifikasi:	CE RoHS
Nomor model:	GX16-PW-S-2 3 4 5 6

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	150 buah
Harga:	negotiate
Kemasan rincian:	dikemas dengan tas PE, 150pcs per karton
Waktu pengiriman:	5 hari setelah pembayaran
Syarat-syarat pembayaran:	T/T, Western Union, Moneygram, Paypal
Menyediakan kemampuan:	5000 pcs per minggu

Kontak

Detil Deskripsi produk

Bahan Cangkang:	paduan seng dengan berlapis nikel	Bahan isolator:	Bakelit hitam
Bahan Pin:	Perunggu Lapis Perak	Kawat yang berlaku:	Φ7.5mm
suhu yang berlaku:	-55~+75℃	pin:	2~6
Menyoroti:	GX16 aviation plug 4 pin , aviation plug 4 pin 6 Pin , GX16 aviation connector 2 pin

Male To Female Aviation Connector Kits GX16 PCB Welding Style 2 3 4 5 6 Pin

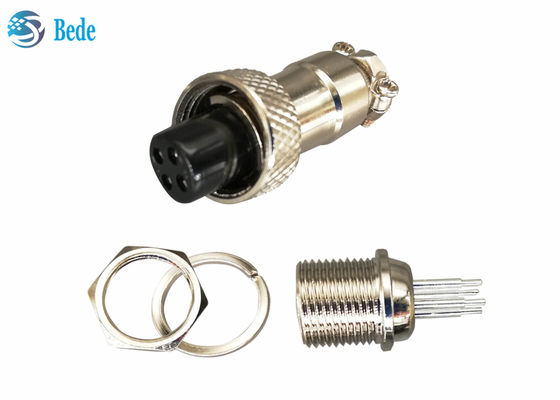

Product Structure

1.contact pins for PCB welding, brass material with silver plated

2. Male connector, rear mounting type, panel cutout 16mm

3.Washer and Nut for fixing male connector in panel

4.Bakelite insulator

5.Housing for female connector

Male To Female Aviation Plug 4 Pin Kits GX16 PCB Welding Style 2 3 4 5 6 Pin 0

Electrical date

pins	2	3	4	5	6
Rated current	7A	7A	5A	5A	4A
working voltage	200V	200V	200V	200V	200V
Insulation resistance	1500V	1500V	1500V	1500V	1500V
Contact resistance	3mΩ
Contact hole size	2.45mm	2.45mm	2.45mm	2mm	1.15mm

Materials and Surface Treatment

Parts	material	surface treatment
Shell	Zinc alloy	nickel plated
insulator	bakelite	non
Contact pins	brass	silver plated

Male To Female Aviation Plug 4 Pin Kits GX16 PCB Welding Style 2 3 4 5 6 Pin 1

All familier

About GX16 aviation connector, M16 circular connectors, please feel free to contact us, or return to the product catalog to know more if you are interested.

1.Panel mounting model-- front mounting

2.Cable docking model

3.Panel mounting model--Rear mounting

4.Panel mounting model with round flange

5.Panel mounting model with square flange

6.Panel mounting model with rhombus flange

7.PCB welding model with elbow pins

8.PCB welding model with straight pins

9.Panel mounting model with right angle--front mounting

10.Waterproof cable docking model

11.Waterproof panel mount model

12.Panel mounting model with right angle--rear mounting

Male To Female Aviation Plug 4 Pin Kits GX16 PCB Welding Style 2 3 4 5 6 Pin 2
