2204534-1 TE Connectivity ELCON MINI Series 3P Connector Housing

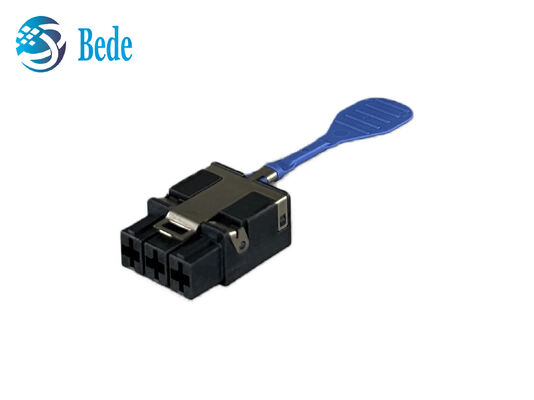

Gambar besar : 2204534-1 TE Connectivity ELCON MINI Series 3P Connector Housing

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Sertifikasi:	RoHS
Nomor model:	2204534-1

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	500
Harga:	Bisa dinegosiasikan
Waktu pengiriman:	berdasarkan jumlah
Syarat-syarat pembayaran:	T/T, Western Union
Menyediakan kemampuan:	3000pcs per hari

Kontak

Detil Deskripsi produk

Seri:	ELCONMini	Jenis Produk:	Majelis Konektor
Bahan cangkang:	Polimer Kristal Cair (LCP) GF30	Kisaran Suhu:	-40 ° C hingga +105 ° C.
Jumlah kontak:	3	Warna:	Hitam

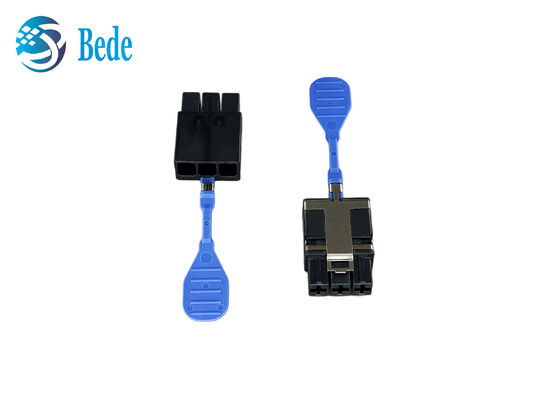

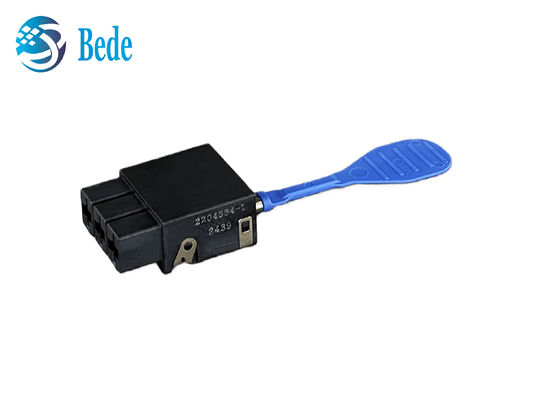

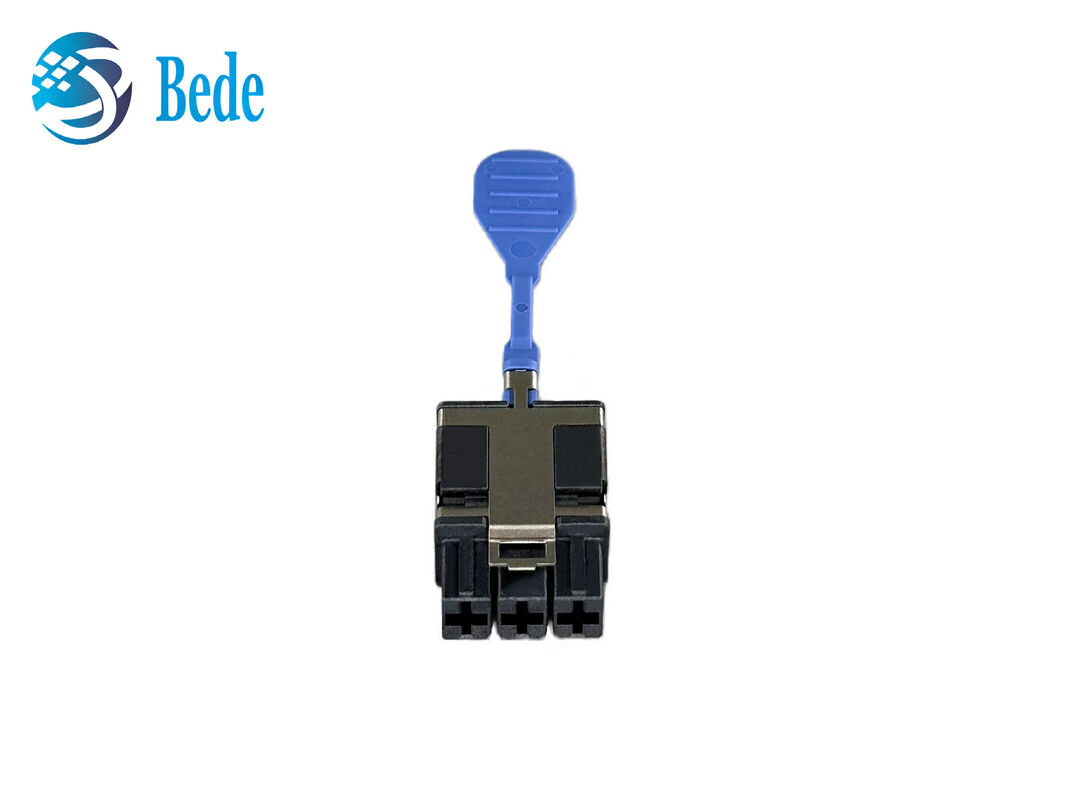

2204534-1 TE Connectivity ELCON MINI Series 3P Connector Housing

Product Overview

The 2204534-1 is a high-density, low-profile 3-position heavy-duty power plug housing from TE Connectivity's ELCON Mini series. It features a space-saving 8mm profile height and is engineered to deliver reliable high-current power distribution in space-constrained Wire-to-Board applications. It is equipped with an integrated plastic pull-tab for safe, easy extraction in dense electronic enclosures.

Specifications

Specification	2204534-1
Connector & Housing Type	Plug
Number of Positions	3
Connector System	Wire-to-Board
Operating Voltage	400 VAC / 400 VDC

Product Features

Integrated Pull-Tab: Allows easy, toolless disconnection in dense racks without damaging wires
Positive Locking: Features an internal latch mechanism to prevent accidental unmating from vibration
Polarized Housing: Designed with physical keying to block incorrect insertion or reverse orientation
LCP GF30 Base Material: Molded from 30% glass-filled Liquid Crystal Polymer for elite thermal stability

Applications

Server Power Supply Unit (PSU) Output: Connecting the main internal AC/DC or DC/DC converter brick directly to the server motherboard to supply high-current power to processors
Industrial Control Cabinet Backplanes: Powering Programmable Logic Controllers (PLCs) and input/output (I/O) modules mounted inside cramped electrical enclosures
Telecommunications & Wireless Infrastructure

Customization Services

Custom connector plastic parts, such as insulator, nut, housing etc.
Custom connector internal conductors, male and female pins, with silver or gold plating
Custom connector accessories, such as silicone rings and dust covers
