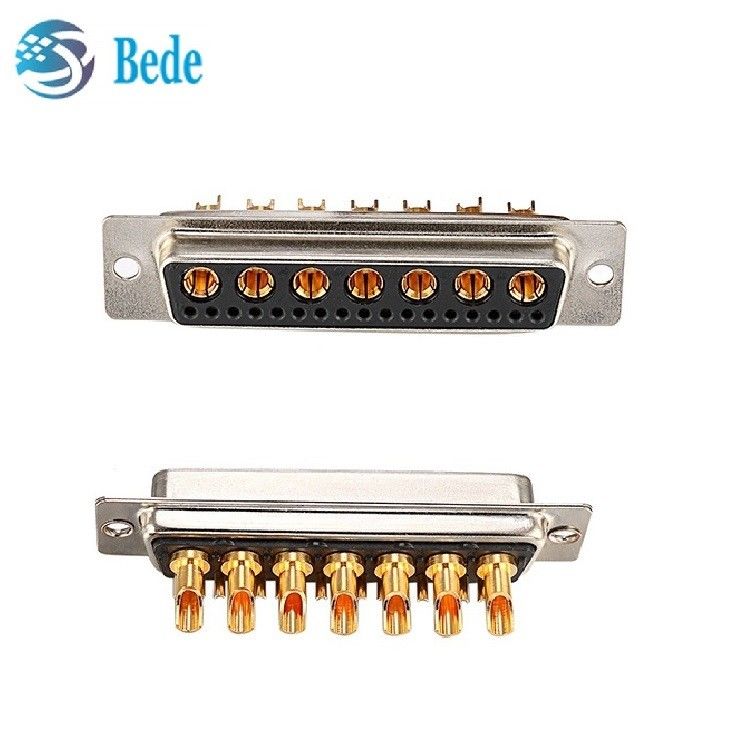

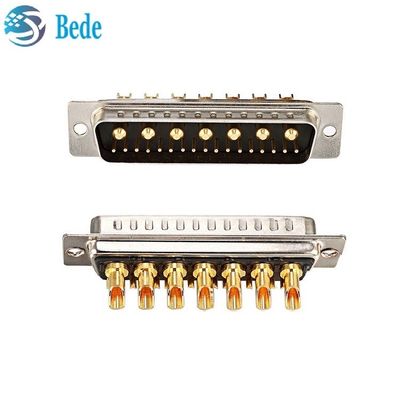

24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins

24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins
24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins 24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins

Gambar besar :  24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE
Nomor model: Pin sudut kanan 7W2
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100
Harga: Bisa dinegosiasikan
Kemasan rincian: Tas pe dan karton
Waktu pengiriman: berdasarkan jumlah
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 4000 pcs per hari
Kontak
Detil Deskripsi produk
Suhu yang Berlaku: -55~+125℃ Jenis kelamin: Pria dan wanita
Tipe Konektor: D sub Tegangan Kerja: 300v
Nilai Saat Ini: 10A / 20A / 30A / 40A Gaya konektor: D-SUB 7W2
Bahan Kontak: Paduan Tembaga berlapis emas Konektor dengan bahan kontak sinyal: Berlapis emas kuningan
Sinyal menghubungi peringkat saat ini: 3A Bahan isolator: PBT+30%GF
Menyoroti:

Straight Pins Connector

,

24W7 DB Hybrid Connector

,

Mixed Power Signal Transmission Connector

24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins



Description


Bede's 24W7 D-Sub connectors redefine space-constrained interconnect solutions through optimized 24-pin hybrid configuration (7 RF coaxial + 17 power contacts). Engineered for mission-critical systems requiring concurrent high-voltage power delivery and precision signal transmission in compact footprints.

24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins 0



Applications:

  • Telecom Infrastructure: Massive MIMO antenna array power/signal consolidation
  • Robotics: Cobot servo motor power & feedback signal unification
  • Energy Storage: BMS multi-cell voltage monitoring interfaces
  • Aerospace: Avionics LRU module hot-swap connectivity

Technical Specifications

  • Contact Layout:   24-position (7x coaxial + 17x power)
  • RF Bandwidth DC - [Insert GHz]
  • Current Rating:  3A per Single contact,
  • Current Rating: 10A/ 20A/ 30A/ 40A  Optional
  • Contact resistance:2.7 MΩ Max.
  • Insulation resistance:2000 megaohms min
  • Dielectric Withstanding Voltage: 1000V for 1 Min.
  • Insertion Force:  0.7~2N per single contact
  • Extraction force: 2N per single contact
  • Operating Temperature: -55°C to +105°C

24W7 DB Hybrid Connector Series Mixed Power-Signal Transmission Straight Pins 1

Material and finish

Parts Materials finish
shell  SPCC-SD nickel or tin plated
contact pins Phosphor copper Gold finish over nickel
Insulator PBT + 30% GF UL94V-O)









Label:

Konektor D Sub PA66,

Konektor dsub IP68,

Konektor D Sub 9 Pin
