Male And Female DB 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68

Semua produk
Konektor Penerbangan GX (68)
Konektor D Sub (20)
Konektor MIL-Spec (8)
Konektor Melingkar (20)
Kabel AISG RET (28)
Soket Steker Industri (30)
Konektor kabel tahan air (21)
Kotak Persimpangan Tahan Air (6)
blok terminal cepat (11)
Penyambung HDMI (18)
Sertifikasi
Cina DONGGUAN BEDE MOLD AND PLASTIC FRODUCTS CO., LID Sertifikasi
Cina DONGGUAN BEDE MOLD AND PLASTIC FRODUCTS CO., LID Sertifikasi
Ulasan pelanggan
Hi Elissa, Early last year, a coworker of mine had ordered 20 cables from your company. The cables your company made for us worked quite well, and I’m interested in using your company to produce more of these cables in the future.

—— Matthew Goetzman

Harga yang kompetitif, layanan berkualitas tinggi, kami akan bekerja sama dengan Anda untuk waktu yang lama!

—— Donegek Ilya

I 'm Online Chat Now

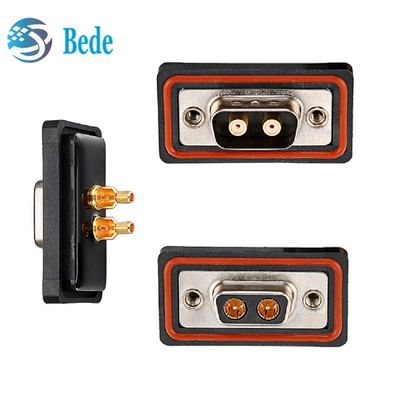

Male And Female DB 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68

Male And Female DB 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68
Male And Female DB 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68

Gambar besar :  Male And Female DB 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE
Nomor model: 3W3
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 500
Harga: Bisa dinegosiasikan
Kemasan rincian: Tas pe dan karton
Waktu pengiriman: berdasarkan jumlah
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 3000pcs per hari
Kontak
Detil Deskripsi produk
Gaya konektor: D Subminiatur Bahan Pin: kuningan + berlapis timah + berlapis emas
Bahan: PA66 / Silikon / Kuningan Jumlah baris: 1
Suhu Pengoperasian Benar: -55~+125℃ Jenis kontak: Pateri
Jenis Produk: konektor RF Nilai Saat Ini: 10A 20A 30A 40A opsional
Bahan Kontak: Paduan Tembaga Sealant: resin epoksi
Tahan air: IP68 Isolator: PBT dengan GF 15%.
Tegangan Kerja: 300v Resistensi Kontak Daya Tinggi: 2,7 juta ohm Maks.
Dielektrik menahan tegangan: 1000V AC selama 1 menit Resistensi Isolasi: 2000 megaohm Min.
Menyoroti:

Solder Cup Male Power Connector

,

Male IP 68 Power Connector

,

2w2 Solder Cup Power Connector

 Male And Female D Sub 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68



Description



   2W2 d sub coaxial cable female and male connector, which made of copper shell, PBT+15%GF insulator, and epoxy resin as sealling material, have a solid body to meet the IP67 protection, with the option of corrosion protection or corrosion resistance, is well suited for outdoor harsh environment applications.

  Please refer to the following drawings for dimensions. If more details are needed, please feel free to contact us

      Male And Female DB 2w2 Solder Cup Coaxial Power Connector Waterproof IP 68 0



How to Buy

  We provide this product with different rated currents for different usage scenarios. Please let us know the part number and quantity. We will wholeheartedly provide you with the best products and services.

   We offer this connectors with sealed cable and sealed panel mounting options, and both of them can be straight type and right angle type. Please feel free to contact us for more details.



Part number A B Wire Gauge/AWG Rated current/A
DB3W3-1 2.5 4.5 14~16 10
DB3W3-2 3.6 5.0 10~12 20
DB3W3-3 4.4 5.5 8~10 30
DB3W3-4 5.5 5.5 6~8 40
