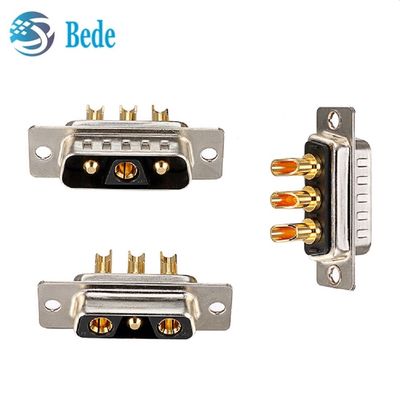

D-Sub 3W3 Coaxial Power Connector Male And Female Combo High Current Connectors

D-Sub 3W3 Coaxial Power Connector Male And Female Combo High Current Connectors
D-Sub 3W3 Coaxial Power Connector Male And Female Combo High Current Connectors D-Sub 3W3 Coaxial Power Connector Male And Female Combo High Current Connectors

Gambar besar :  D-Sub 3W3 Coaxial Power Connector Male And Female Combo High Current Connectors

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE
Nomor model: 3W3
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 500
Harga: Bisa dinegosiasikan
Kemasan rincian: Tas pe dan karton
Waktu pengiriman: berdasarkan jumlah
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 3000pcs per hari
Kontak
Detil Deskripsi produk
Menyoroti:

3W3 High Current Connectors

,

Male Coaxial Power Connector

,

Female Coaxial Power Connector

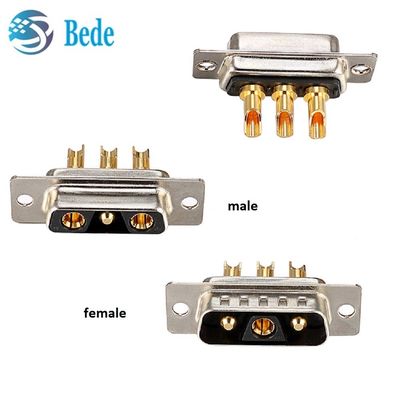

D-Sub 3W3 coaxial power connector male and female combo high current connectors



Description



   3V3 female d-sub coaxial power connector, male and female combo type high current connectors, machined phosphor copper with gold over nickel plated, steel-tin/nickel-plated shell, high temperature white insulator (thermoplastic type PCT UL94V-0), by preloaded fixed contacts and brackets on the PCB bord, the combination D-sub connectors make the signal, power, high voltage running between power and device.





D-Sub 3W3 Coaxial Power Connector Male And Female Combo High Current Connectors 0



Electrical Characteristics

  1. Electrical Characteristics
  2. High Power Contact Current Rating: 10, 20, 300, or 40 Amps.
  3. Working Voltage: 300V.
  4. High Power Contact Resistance: 2.7 milliohms maximum.
  5. Dielectric Withstand Voltage: 1000 VAC for 1 minute.
  6. Insulation Resistance: 2000 megohms minimum.
  7. Temperature Rating: -55°C to +125°C

Size of 3W3 coaxial power connector

   Please refer to the following drawings for dimensions. If more details are needed, please feel free to contact us

      D-Sub 3W3 Coaxial Power Connector Male And Female Combo High Current Connectors 1



How to Buy

  We provide this product with different rated currents for different usage scenarios. Please let us know the part number and quantity. We will wholeheartedly provide you with the best products and services.



Part number A B Wire Gauge/AWG Rated current/A
DB3W3-1 2.5 4.5 14~16 10
DB3W3-2 3.6 5.0 10~12 20
DB3W3-3 4.4 5.5 8~10 30
DB3W3-4 5.5 5.5 6~8 40
