Waterproof IP67 Industrial Plug Sockets 5Pins 3P+N+E 63Amp and 125Amp Panel Mounting Type

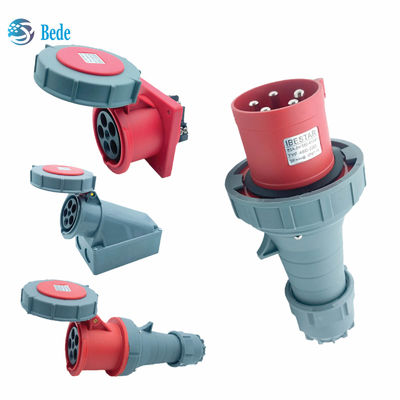

Gambar besar : Waterproof IP67 Industrial Plug Sockets 5Pins 3P+N+E 63Amp and 125Amp Panel Mounting Type

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Sertifikasi:	RoHS
Nomor model:	63a/125a

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	50 buah
Harga:	Bisa dinegosiasikan
Kemasan rincian:	30pcs per karton
Waktu pengiriman:	Dalam 3 hari setelah pembayaran
Syarat-syarat pembayaran:	T/T
Menyediakan kemampuan:	4000 set per hari

Kontak

Detil Deskripsi produk

Warna:	Merah	Polandia:	3P+N+E
Saat ini:	63A dan 125A	Voltase:	220~380V atau 240~415V
Standar:	IEC60309	Tahan air:	IP67
Menyoroti:	copper industrial plug socket , waterproof industrial plug socket , 5 pin industrial plug and socket

Waterproof IP67 Industrial Plug Sockets 5Pins 63Amp and 125Amp Panel Mounting Type

Quick details of IP67 Industrial Plug and Socket

Port	SKU	Rated current	rated voltage	waterproof	No. of poles	wire cross cection
Plug	ABD0352	63Amp	220~380V 240~415V	IP67	5P(3P+N+E)	6~16mm²
Plug	ABD0452	125Amp		IP67	5P(3P+N+E)	16~50mm²
socket	ABD3152	63Amp		IP67	5P(3P+N+E)	6~16mm²
socket	ABD3252	125Amp		IP67	5P(3P+N+E)	16~50mm²

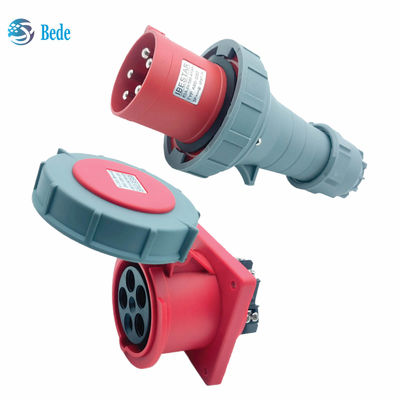

Waterproof IP67 Industrial Plug Sockets 5Pins 3P+N+E 63Amp and 125Amp Panel Mounting Type 0

Size of IP67 Industrial Plug

Waterproof IP67 Industrial Plug Sockets 5Pins 3P+N+E 63Amp and 125Amp Panel Mounting Type 1

Rated current	SKU	a/mm	b/mm	φc/mm	d/mm	e/mm
63Amp	ABD0352	116	75	37	251	187
125Amp	ABD0452	128	86	47	276	200

Size of IP67 Industrial Socket

Waterproof IP67 Industrial Plug Sockets 5Pins 3P+N+E 63Amp and 125Amp Panel Mounting Type 2

Rated current	SKU	a/mm	b/mm	c/mm	d/mm	e/mm	f/mm
63Amp	ABD3352	114	102	30	106	86	Φ74
125Amp	ABD4452	126	112	39	122	102	Φ85
