3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp

3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp
3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp

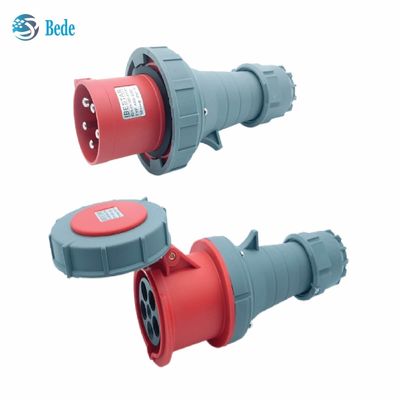

Gambar besar :  3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: RoHS CE
Nomor model: ABD0152+ABD2152
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 30 buah
Harga: Bisa dinegosiasikan
Kemasan rincian: Colokan dan soket dikemas terpisah, 30pcs per karton
Waktu pengiriman: Dalam 3 Hari
Syarat-syarat pembayaran: T/T, Western Union
Menyediakan kemampuan: 5000 kit per hari
Kontak
Detil Deskripsi produk
Warna: Merah Fase: 3 fase
pin: 3P+N+E Nilai Tegangan: 380~415V
Nilai Saat Ini: 63a/125a Bahan Pin: Pin Kuningan
Menyoroti:

copper industrial plug socket

,

waterproof industrial plug socket

,

5 pin industrial plug and socket

3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp ​





Technical data of the industrial plug socket



Material rated current rated voltage Executive standard No. of poles protection Grade
PP+brass 63/125Amp 380~415V IEC60309 5 Pins IP67



Size of the industrial plug



rated current a / mm b / mm Φc d e cabel's cross-section mm2
63Amp 116 75 37 251 187 6~16
125Amp 128 86 47 276 200 16~50

3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp 0





Size of the industrial socket



rated current a / mm b / mm c / mm d / mm cabel's cross-section mm2
63 Amp 114 117 37 270 6~16
125 Amp 115 130 47 305 16~50



3P+N+E Industrial Plug & Socket 5 Pins Industrial Couplor IP67 AC380-415V 63 And 125 Amp 1
