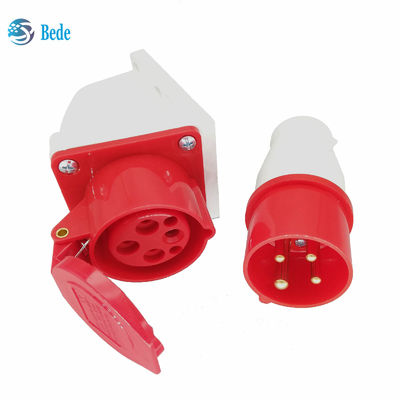

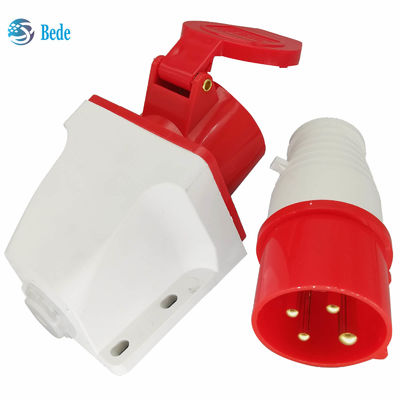

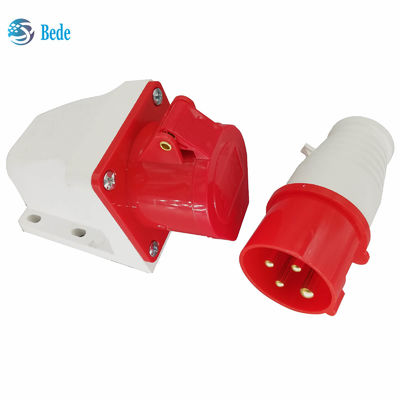

Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44

Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44
Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44 Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44 Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44 Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44

Gambar besar :  Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE,RoHS
Nomor model: ABD024+ABD124
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 30 buah
Harga: Bisa dinegosiasikan
Waktu pengiriman: 5 hari
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 5000pcs per hari
Kontak
Detil Deskripsi produk
Warna: merah dan putih Nilai Tegangan: AC380V~415V
Nilai Saat Ini: 16amp Standar: IEC 60309
Bahan Kontak: Kuningan Bahan Perumahan: Polipropilena
Menyoroti:

Male Female Electrical Plug Socket IP44

,

3P+N 4 Pin Industrial Socket

,

Male Female Industrial Plug And Socket

Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44





 There are many types of IEC 60309 sockets, outlets, plugs, connectors and application inlets, they differ with respect to voltage, current, frequency rating and number of pins. Plugs have round pins, arranged in a circle, all plugs and sockets have a protective earth (PE) connection, the diameter of it is always 2 mm larger than the other pins, position of the earth pins vary between different types of plugs, can be regarded as a clock.

 Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44 0



  This page is a set of plugs and wall mounting type sockets, the sockets are generally mounted on the flat suiface, such as equipment (chassis) housing and the wall. Commonly used industries are: power distribution boxes, distribution cabinets, injection moulding machines, packaging machines, showrooms, etc, for power transmission and distribution.



    Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44 1

Quickly details of the CEE plug and socket



Pins Rated voltage phase Rated current housing material pins materials Earth position
3p+E 380~415V 3 phase 16 Amp PP Brass 6h



Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44 2

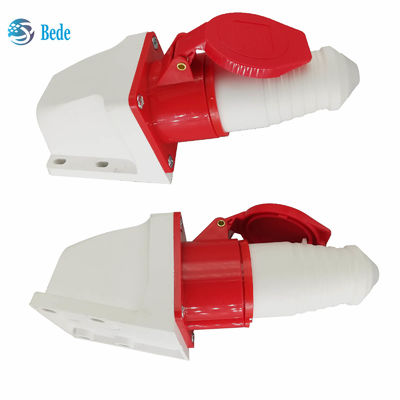

Replaceable CEE sockets



 This plug also be used with panel mounting  socket and coupler

Male Female Electrical Socket 4 Pins 3P+E 380~415V 16Amp Wall Mounting Type IP44 3

Label:

Steker dan soket 3 pin industri IP44,

Soket industri Fase Tunggal 16a,

Steker dan soket 3 pin industri tahan air
