PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel

PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel
PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel

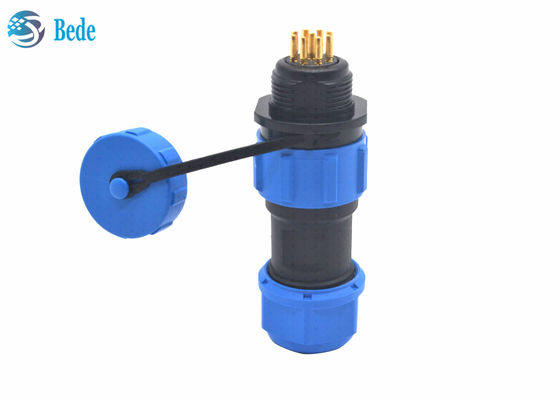

Gambar besar :  PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE RoHS
Nomor model: 1710P-1712S
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 160 SET
Harga: Bisa dinegosiasikan
Kemasan rincian: pengepakan dalam tas PE masing-masing dan 80 set per karton
Waktu pengiriman: dalam waktu 5 hari
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 5000 set per hari
Kontak
Detil Deskripsi produk
Bahan Cangkang: PA66 UL94V-0 Bahan Pin: Kuningan dengan berlapis Emas
kawat yang berlaku: 5~8mm / 7~10mm suhu yang berlaku: -25~+80℃
Tahan Tegangan: 1500V Lubang pemasangan: 17mm
Menyoroti:

M17 2 pin waterproof connector

,

PA66 2 Pin Waterproof Connector

,

PA66 5 pin waterproof connector

M17 Waterproof Connector Panel Mounting Connector 2 3 4 5 6 7 9 Pin Cable To Panel

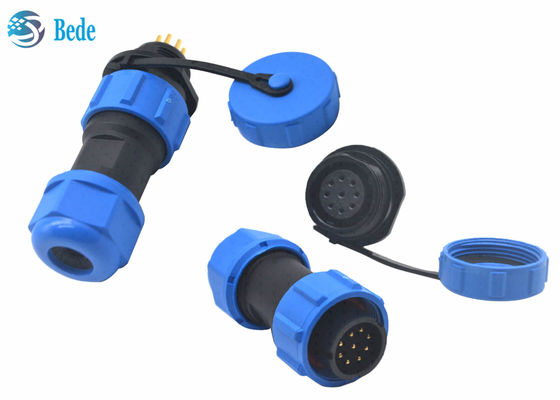

Structure



1. Female connector for panel mounting, housing merterial is PPS(Temperature resistance 260℃), pins merterial is brass with gold plated

2.Protactive cap, protect the socket when not connected

3.O-ring for waterproofing, rubber material

4.Male connector, material as the same as female

5.Nut for fixing male and female after connection

6.Housing, fix male connector and cable

7/8.Screw claw and nut for waterproof of cable end

PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel 0



Electrical data



pins 2 3 4 5 6 7 9
Rated current / A 10 10 5 5 5 55
contact hole size / mm Φ1.5x2 Φ1.5x3 Φ1.0x4 Φ1.0x5 Φ1.0x6 Φ1.0x7 Φ1.0x9
working voltage / V 500 500 500 500 400 400 400



PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel 1

All family

  M13 M17 M21 are in stock, all of them have  cable-to-cable docking model  and cable to panel mounting models

PA66 M17 2 Pin Waterproof Connector Panel Mounting 3 4 5 6 7 9 Pin Cable To Panel 2



Label:

IP68 Konektor kabel tahan air,

Konektor ip68 4 pin untuk luar ruangan,

IP68 konektor tahan air 5 pin
