M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin

M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin
M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin

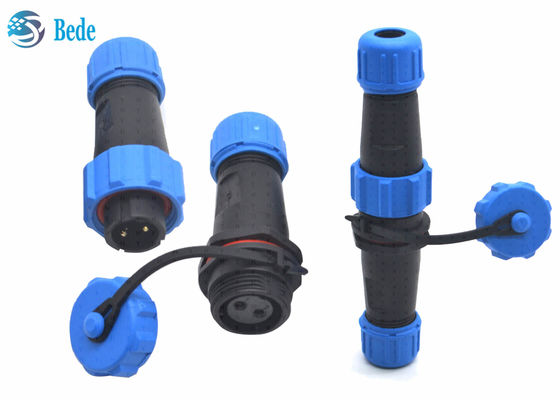

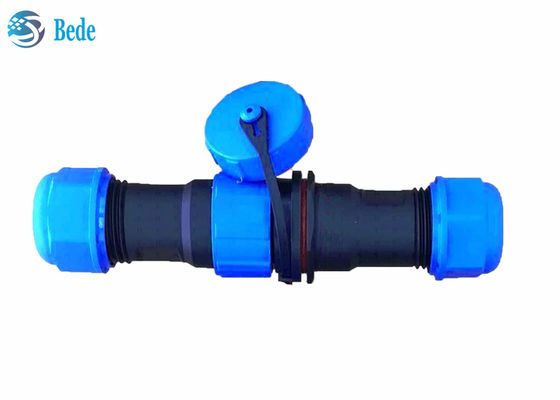

Gambar besar :  M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin

Detail produk:
Tempat asal: Cina
Nama merek: BEDE
Sertifikasi: CE RoHS
Nomor model: 1310P-1311S
Syarat-syarat pembayaran & pengiriman:
Kuantitas min Order: 100 set
Harga: Bisa dinegosiasikan
Kemasan rincian: pengepakan dalam tas PE masing-masing dan 100 set per karton
Waktu pengiriman: dalam waktu 4 hari setelah pembayaran
Syarat-syarat pembayaran: T/T, Western Union, MoneyGram
Menyediakan kemampuan: 4500 set per hari
Kontak
Detil Deskripsi produk
Bahan Cangkang: PA66 UL94V-0 Bahan Pin: Kuningan dengan berlapis Emas
Isolator: PPS kawat yang berlaku: 4~6.5mm / 5~8mm
suhu yang berlaku: -25~+85℃ Metode Pengkabelan: Pematerian
Menyoroti:

M13 cable docking connector

,

cable docking connector 9Pin

,

m13 connector 7Pin

M13 Waterproof Cable Connector cable to cable docking Connector 2 3 4 5 6 7 9 Pin



Description

1. cable to cable docking connetors, male and female sets,

2.shells material is PA66, flame retardant UL94V-0

3.insulator meterial is PBT, temperature resistance up to 260°C and high insulation resistance

4.pins: 2 3 4 5 6 7 9

5.suitable cable diameter: Φ4~6.5mm or 5~8mm,

6.applicable temperatrue: -25~+85℃

M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin 0

Electrical data



pins 2 3 4 5 6 7 9
Rated current 13A 13A 5A 5A 5A 5A 3A
contact hole size Φ1.6x2 Φ1.6x3 Φ1.0x4 Φ1.0x5 Φ1.0x6 Φ1.0x7 Φ0.7x9
working voltage 250V 250V 200V 180V 125V 125V 125V



M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin 1

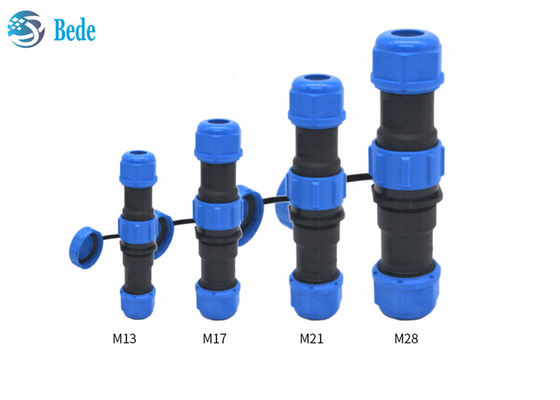

All family

  M13 M17 M21 are in stock, all of them have  cable-to-cable docking model  and cable to panel mounting models

M13 Waterproof Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin 2



Label:

IP68 Konektor kabel tahan air,

Konektor ip68 4 pin untuk luar ruangan,

IP68 konektor tahan air 5 pin
