Rhombus Flange M12 3A 200V Military Circular Connectors 5 6 7 Pins

Gambar besar : Rhombus Flange M12 3A 200V Military Circular Connectors 5 6 7 Pins

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Sertifikasi:	CE RoHS
Nomor model:	gx12-RF-5 6 7

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	100 set per karton
Waktu pengiriman:	3 hari
Syarat-syarat pembayaran:	T/T, Western Union, MoneyGram
Menyediakan kemampuan:	6500 set per hari

Kontak

Detil Deskripsi produk

Warna:	Perak	Pin:	5/6/7
Lubang pemasangan:	12 milimeter	Nilai Saat Ini:	3 Ampere
Nilai Tegangan:	200 Volt	Suhu yang Berlaku:	-50~+70℃
Menyoroti:	200V Military Circular Connectors , M12 3A Military Circular Connectors , military circular connector 7Pins

Military Circular Connectors With Rhombus Flange M12 3A 200V 5 6 7 Pins

Description

A high-quality military connector, the body is zinc alloy, nickel-plated, the contact material is copper, with silver plating, good electrical conductivity, low contact resistance
Male and female set with dust cover (optional)
Complete accessories with screws and nuts for panel mounting
The wiring method is welding, applicable wire diameter 6 mm
Panel mounting type, 12mm mounting holes and flange screw holes need to be reserved on the panel

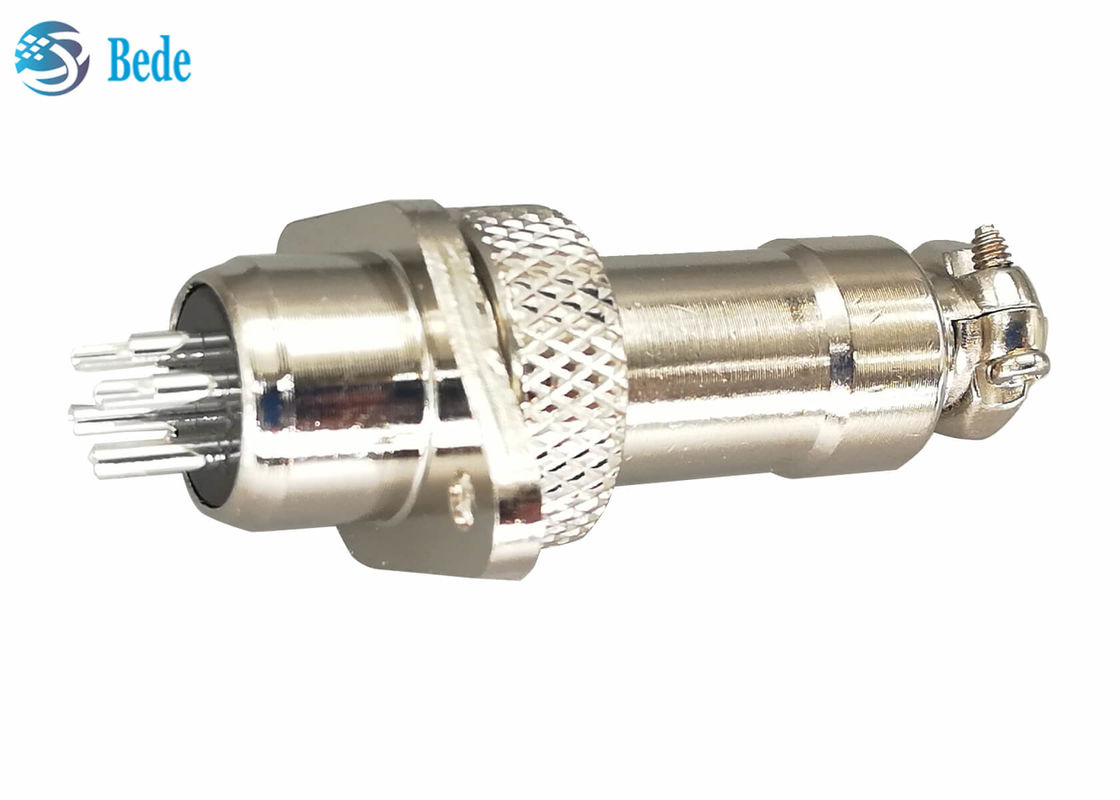

Rhombus Flange M12 3A 200V Military Circular Connectors 5 6 7 Pins 0

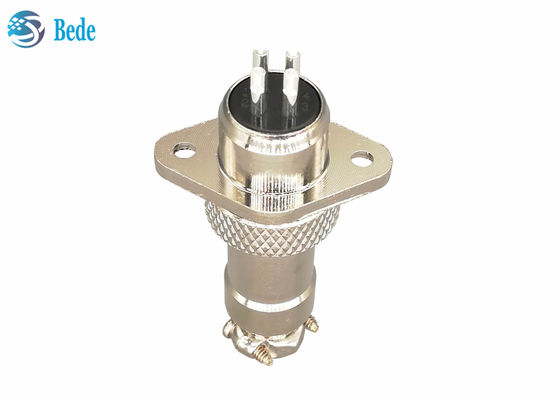

Rhombus Flange M12 3A 200V Military Circular Connectors 5 6 7 Pins 1

Technology date

Pins: 5 6 7 pin
Rated current: 3A
Rated voltage: 200V
Insulation resistance: 1500MΩ
Contact resistance: 0.003Ω
Applicable temperature: -50℃ ~ +70℃

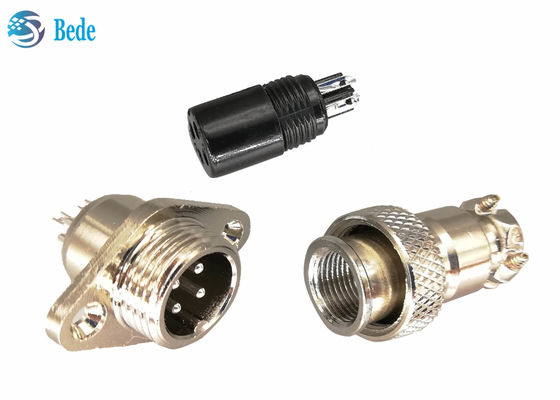

Rhombus Flange M12 3A 200V Military Circular Connectors 5 6 7 Pins 2

Similar products

GX12 rear mounting and front mounting, GX12 PCB welding type straight pins and elbow pins, GX12 waterproof type, GX12 with square flange, GX12 with rhombus flange, GX12 with round flange, GX12 docking type, GX12 docking type waterproof

Rhombus Flange M12 3A 200V Military Circular Connectors 5 6 7 Pins 3
