M17 Waterproof Cable Connectors

Gambar besar : M17 Waterproof Cable Connectors

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Sertifikasi:	CE RoHS
Nomor model:	1710P-1711S

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	pengepakan dalam tas PE masing-masing dan 100 set per karton
Waktu pengiriman:	dalam waktu 5 hari setelah pembayaran
Syarat-syarat pembayaran:	T/T, Western Union, MoneyGram
Menyediakan kemampuan:	4800 set per hari

Kontak

Detil Deskripsi produk

Bahan Cangkang:	PA66 UL94V-0	Bahan Pin:	Tembaga berlapis emas
Isolator:	PPS	kawat yang berlaku:	5~8mm / 7~10mm
suhu yang berlaku:	-25~+85℃	Metode Pengkabelan:	Pengelasan
Tahan air:	IP68	Tahan Tegangan:	1500V
Menyoroti:	M17 Waterproof Cable Connectors , Waterproof Cable Connectors , M17 ip68 waterproof connector 2 pin

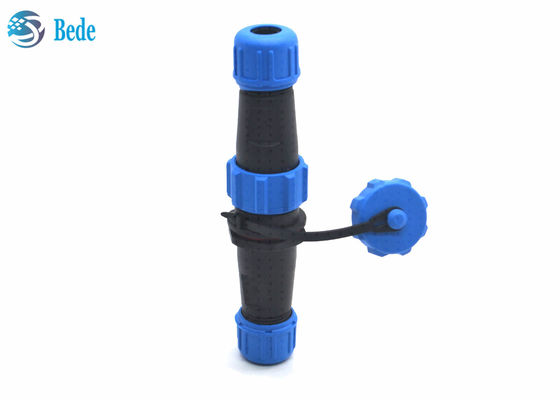

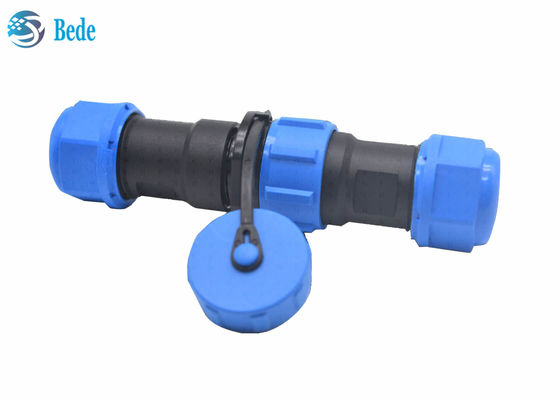

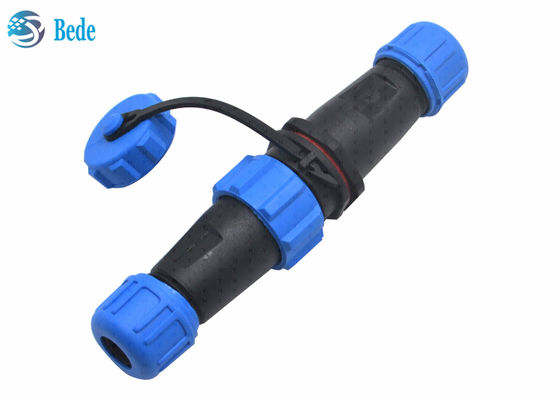

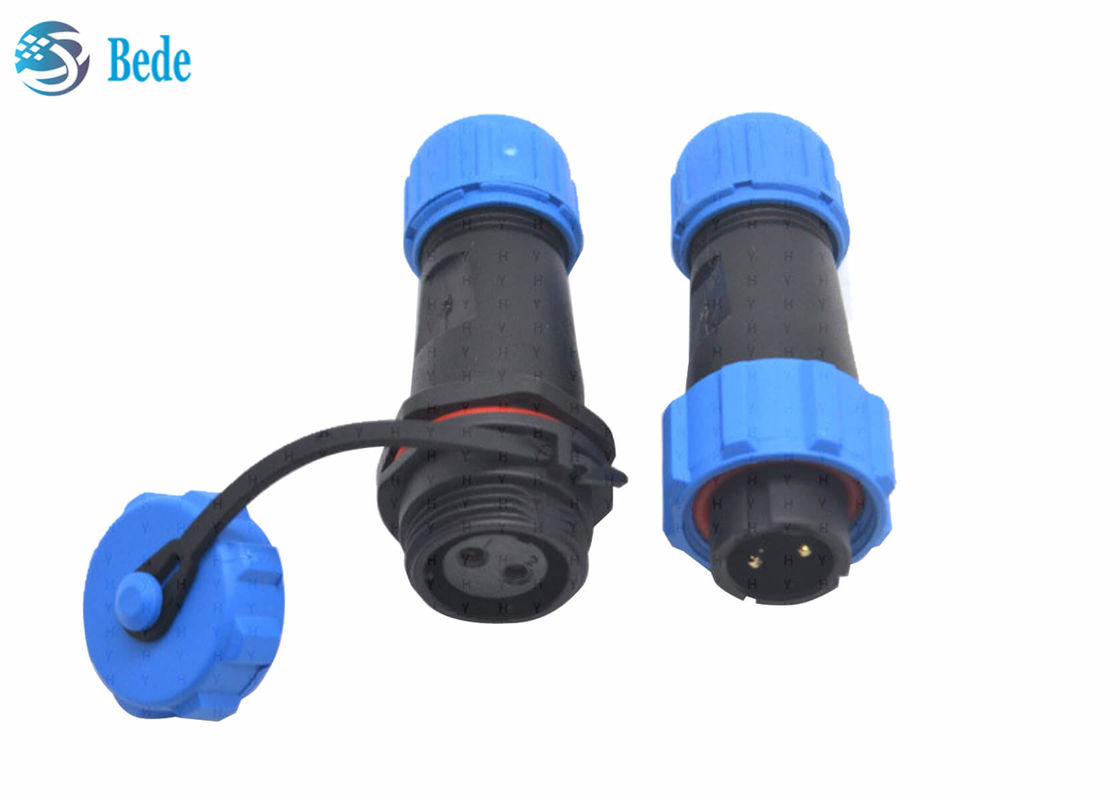

M17 Waterproof Cable Connector Cable To Cable Docking Connector 2 3 4 5 6 7 9 Pin

Description

1.Cable to cable docking connetors, male and female sets,

2.shells material is PA66, flame retardant UL94V-0

3.insulator meterial is PBT, temperature resistance up to 260°C and high insulation resistance

4.pins: 2 3 4 5 6 7 9

5.suitable cable diameter: Φ5~7mm or 7~10mm,

6.applicable temperatrue: -25~+85℃

7.waterproof: IP68

8.Withstand voltage: 2 3 4pin 1500V, 6 7 9pin 1000V

9.factory outlet, welcome to customize,not retail

M17 Waterproof Cable Connectors 0

Electrical data

pins	2	3	4	5	6	7	9
Rated current	10A	10A	5A	5A	5A	5A	5A
contact hole size	Φ1.5x2	Φ1.5x3	Φ1.0x4	Φ1.0x5	Φ1.0x6	Φ1.0x7	Φ1.0x9
working voltage	500V	500V	500V	500V	500V	400V	400V

M17 Waterproof Cable Connectors 1

All family

M13 M17 M21 are in stock, all of them have cable-to-cable docking model and cable to panel mounting models

M17 Waterproof Cable Connectors 2
