Round 4 Pin Circular Connector Female Male Docking Connectors 4 5 6 Pins 5A 500V

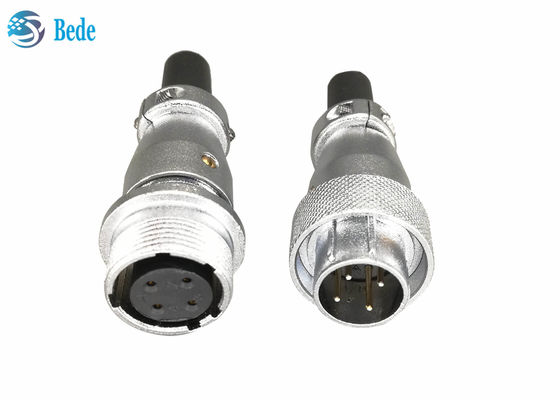

Gambar besar : Round 4 Pin Circular Connector Female Male Docking Connectors 4 5 6 Pins 5A 500V

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Sertifikasi:	CE RoHS
Nomor model:	WS16-D-4/5/6

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 set
Harga:	Bisa dinegosiasikan
Kemasan rincian:	100set per karton, masing-masing dikemas dalam tas PE
Waktu pengiriman:	4 hari
Syarat-syarat pembayaran:	T/T, Western Union, MoneyGram
Menyediakan kemampuan:	4000 set per hari

Kontak

Detil Deskripsi produk

Bahan Perumahan:	Paduan Seng dengan Berlapis Krom	Bahan Kontak:	Kuningan dengan berlapis Emas
Bahan isolasi:	PPS	pin:	4/5/6
Nilai Saat Ini:	5a	Nilai Tegangan:	500V
Menyoroti:	round 4 pin circular connector female , 4 pin female connector round 500V , docking connectors 500V

WS16 Circular Connector Male And Female Docking Connectors 4 Pins 5A 500V

Description

Military grade male and female docking connectors,
Housing material is zinc alloy, chrome plated,
Insulation material is PPS plastic
Contact material is copper, gold plated
Applicable temperature range: -40~+85℃

Product Size

Female connector: ΦD=M18 L=47.5mm Φd max=10mm

Male connector: ΦD=21mm L=44.8mm Φd max=10mm

Round 4 Pin Circular Connector Female Male Docking Connectors 4 5 6 Pins 5A 500V 0

Electrical data

pins	rated current	rated voltage	contact hole diameter	contact resistance	wire section (AWG)
4 / 5/ 6	5A	500V	φ1.0	5mΩ	18

Similar product

This page is about WS16, WS20, WS24, WS28 on sales also, the series also includes panel mount mode, square flange mode, please feel free to contact us if you are interested

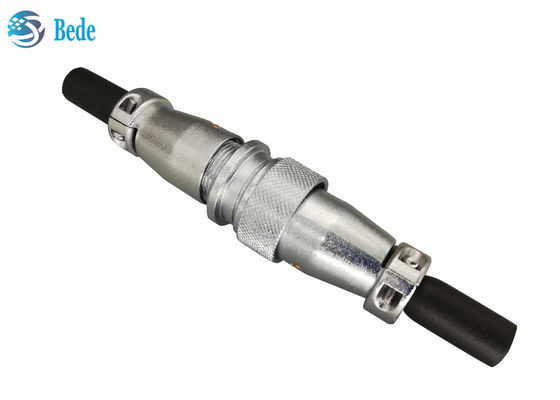

Round 4 Pin Circular Connector Female Male Docking Connectors 4 5 6 Pins 5A 500V 1
