RET Cables Assembly 10 Meter 6 Pins

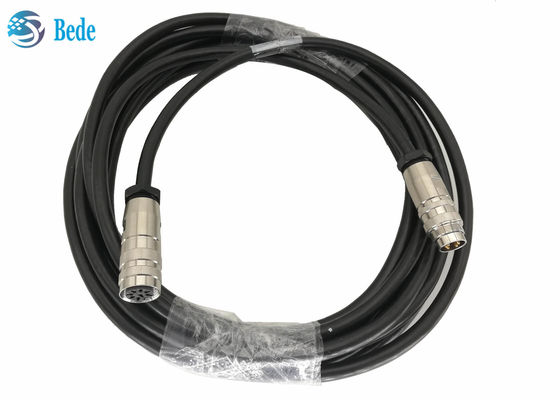

Gambar besar : RET Cables Assembly 10 Meter 6 Pins

Detail produk:

Tempat asal:	Cina
Nama merek:	BEDE
Sertifikasi:	AISG, RoHS
Nomor model:	RET-6-MF-3

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	50 buah
Harga:	Bisa dinegosiasikan
Kemasan rincian:	packing dengan tas PE masing-masing, 20 pcs pra karton
Waktu pengiriman:	dalam waktu 48 jam setelah pembayaran
Syarat-syarat pembayaran:	T/T, Western Union, Money Gram, Paypal
Menyediakan kemampuan:	1500 buah per hari

Kontak

Detil Deskripsi produk

Gaya:	AISG C091	Warna:	Hitam
Panjang:	10 meter, disesuaikan tersedia,	Konduktor:	8 pin
Diameter Kabel:	7mm	Nilai Tegangan:	300v
Suhu Operasional:	-40℃ ~ +85℃	penuaan akibat sinar UV:	168 jam
Menyoroti:	RET Cables 10 Meter , AISG C091 RET Cables

RET Cable Assembly 10 Meter 6 Pins AISG Male To Female For Antenna Base Stations

What is RET Cables:

Remote Electrical Tilt (RET) is a system that makes it possible to adjust the electrical tilt of an antenna remotely. The RET Cables is generally used on the base station antenna, making remote adjustments to the angle of the antenna. It consists of two AISG connectors with IP67 degree, one type of male end and another type of female end, connected by an RVVP cable.

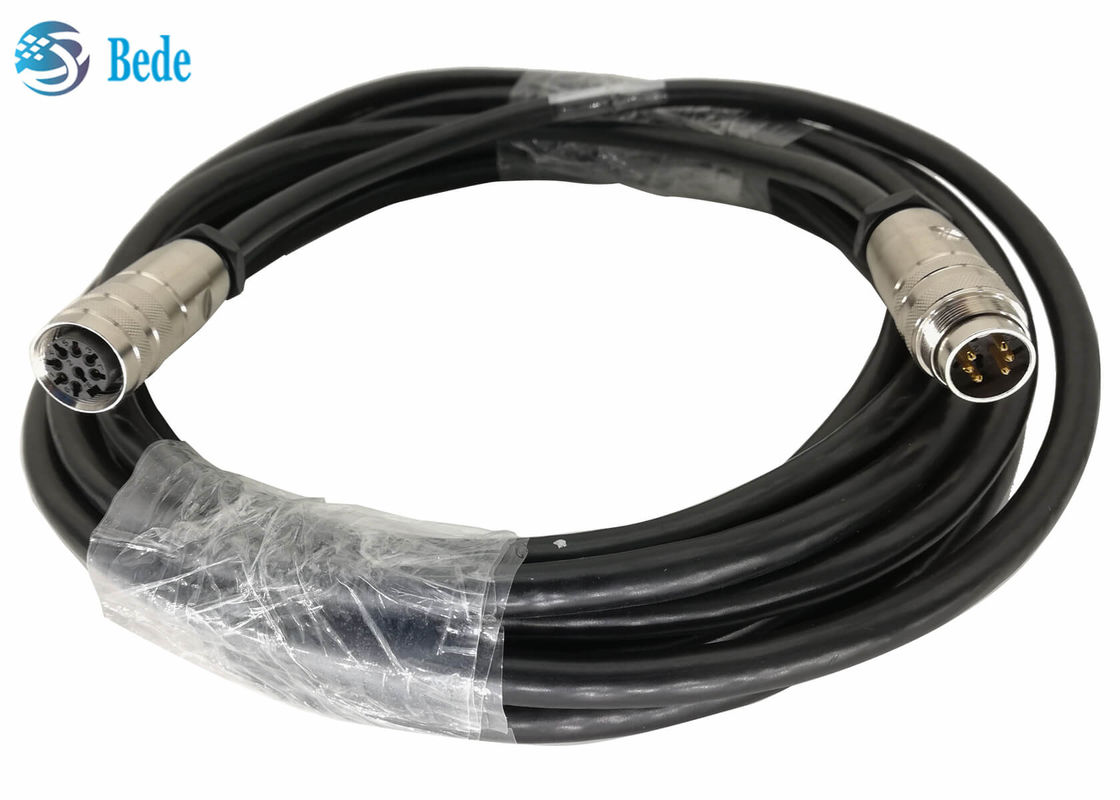

RET Cables Assembly 10 Meter 6 Pins 0

Applications:

Remote Electrical Tilt (RET) System Applications or Remote Control Unit (RCU)
Antenna Control Unit for AISG Compliant Systems
Tower Mounted or Masthead Amplifiers with AISG Interface (TMA)
Network Control with Integrated AISG Interface
Antenna Base Stations

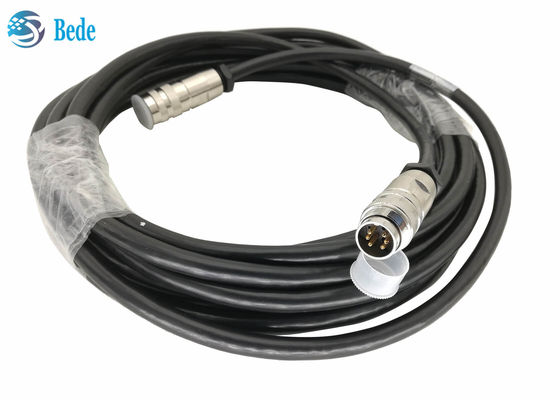

RET Cables Assembly 10 Meter 6 Pins 1

Quick details:

AISG Connector	aplicable temperature	Voltage	Insulation resistance	Contact resistance
6 pin, AISG female to male	-40℃ ~ +80 ℃	300V	≥5MΩ	≤5mΩ

Features:

1. 720 h salt spray resistance

2. IP68 protection without tape

3. EMC with 30 db

4. 8 pin layout (4, 5 or 6 contacts loaded)

5. Gauges materials is gold plated copper, good electrical conductivity and low contact resistance

6. Length: 0.5~100 meters, or by feet, customized available

About the wire:

3x 0.75mm²(20 AWG) stranded (power) 2 x 0.25mm²(23 AWG) twisted pair (data) 5 cores cable 7mm (0.26 inch) diameter
3 x 0.41mm²(21AWG) stranded (power) 2 x 0.21mm² (24 AWG)twisted pair (data) 5 cores cable 7mm (0.26 inch) diameter
The above two cable sizes for your opinion
The outer jacket is available in two materials for your opinion, PU or PVC
Aluminum-Magnesium alloy braid‐type shield, coverage≥ 85%

RET Cables Assembly 10 Meter 6 Pins 2
